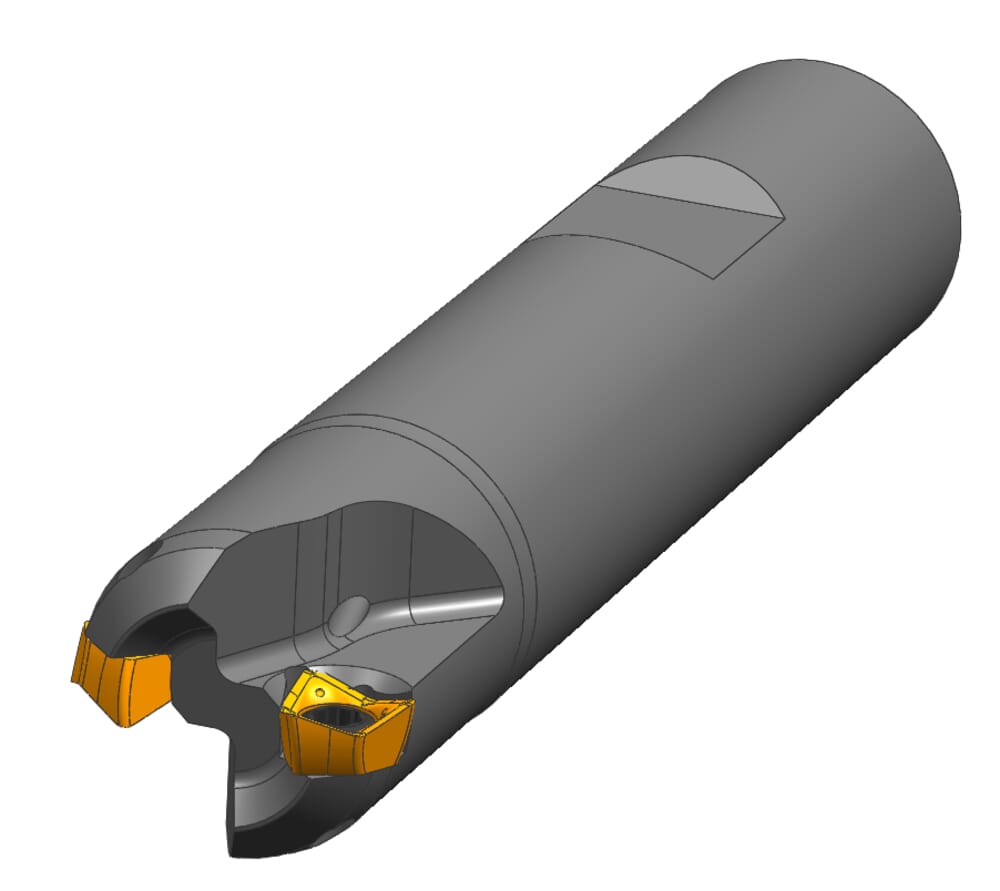

DAM31.411.D163.02B
Toolholder
Part number DAM31411D16302B
HORN Toolholder DAM31.411.D163.02B for Milling
Please note:Technical instructions
DIN_CCTWS
HORN-DA31163N
eclass-shortcut
21-18-08-90

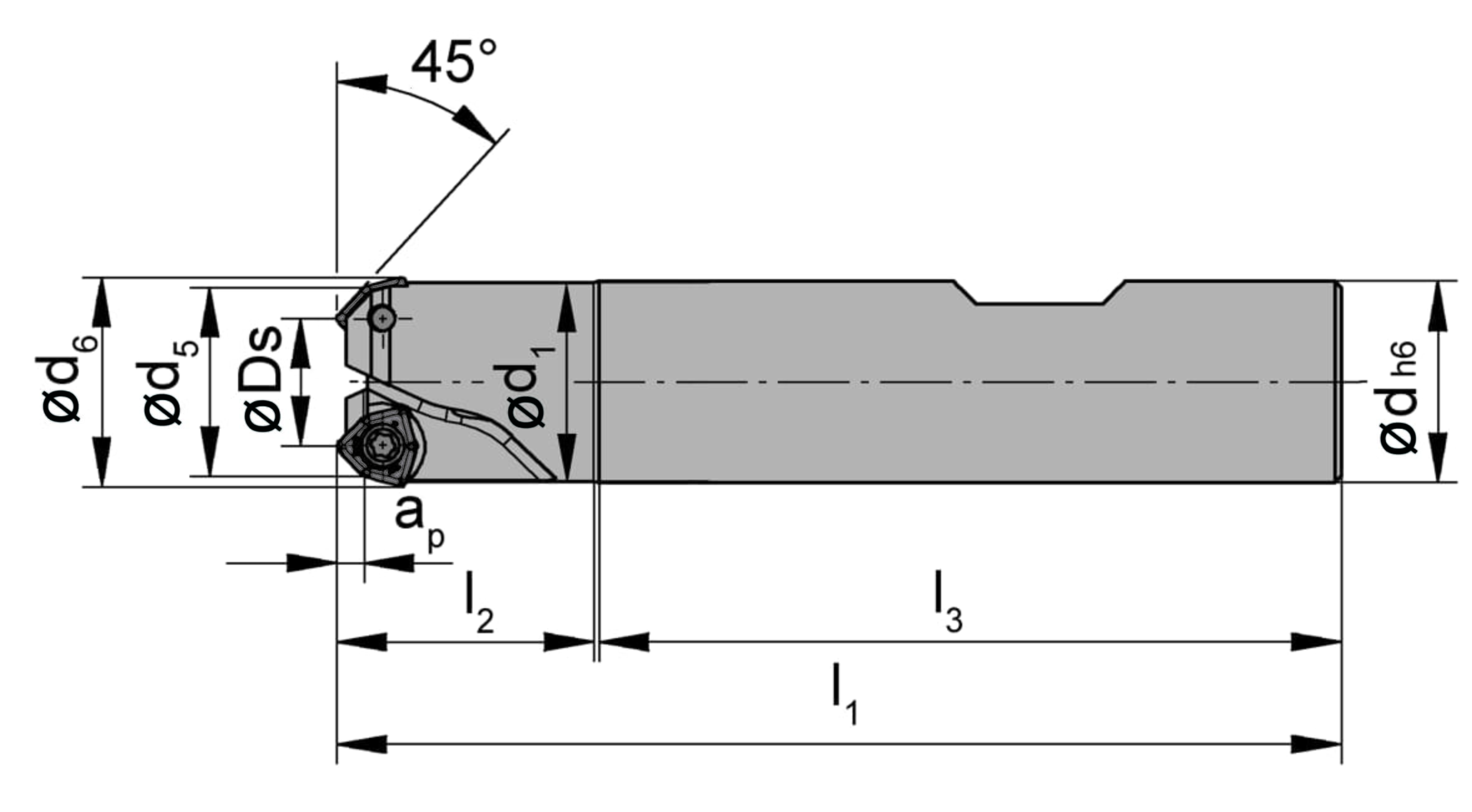

Tension length (l3)
59
mm
Working length, Neck length, Extension length (l2)
20
mm
Total length insert (l1)
80
mm
cone-diameter-met
16
mm
Neck diameter (d1)
15.8
mm
Cutting depth (ap)
2
mm
ISO_CCTMS
ZYL10G1600h$06
DIN_CCTMS
ZYL01601005
Katalog_CCTWS
DA3116
ISO_CCTWS
HORNDA3116$$3N$$$$$
Diameter (d6)
16.9
Maximum cutting circle diameter (d5)
15
Number of teeth (Z)
2
St.
Cutting diameter (Ds)
10.4
mm
Shank diameter (d)
16
mm
| Downloads | |
|---|---|
| DAM31411D16302B_20210629_121718501.DXF | Download |
| DAM31_411_D163_02B_20171121_231620528.STP | Download |
| Download all files | |
