DAM31.414.M104.03B
Toolholder
Part number DAM31414M10403B

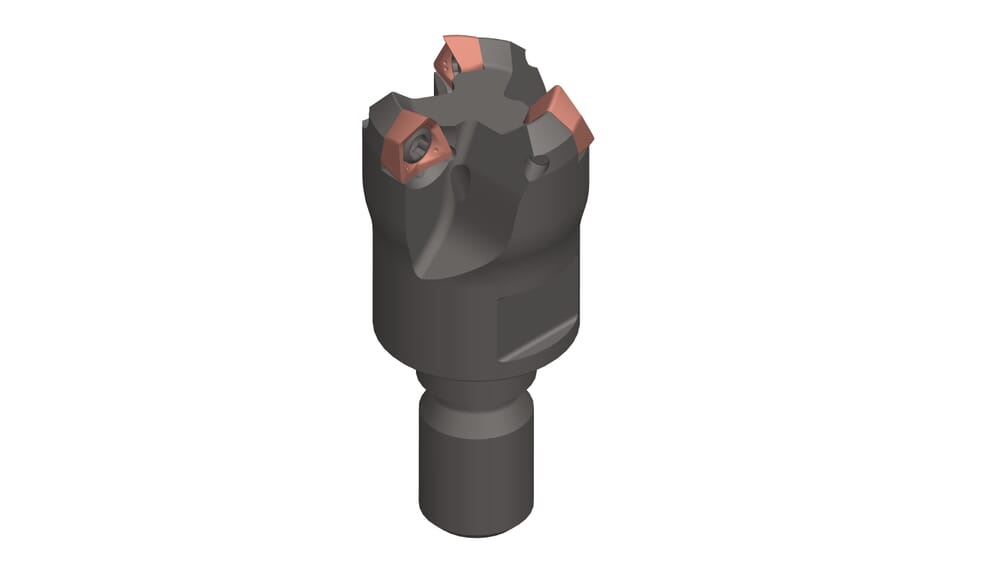

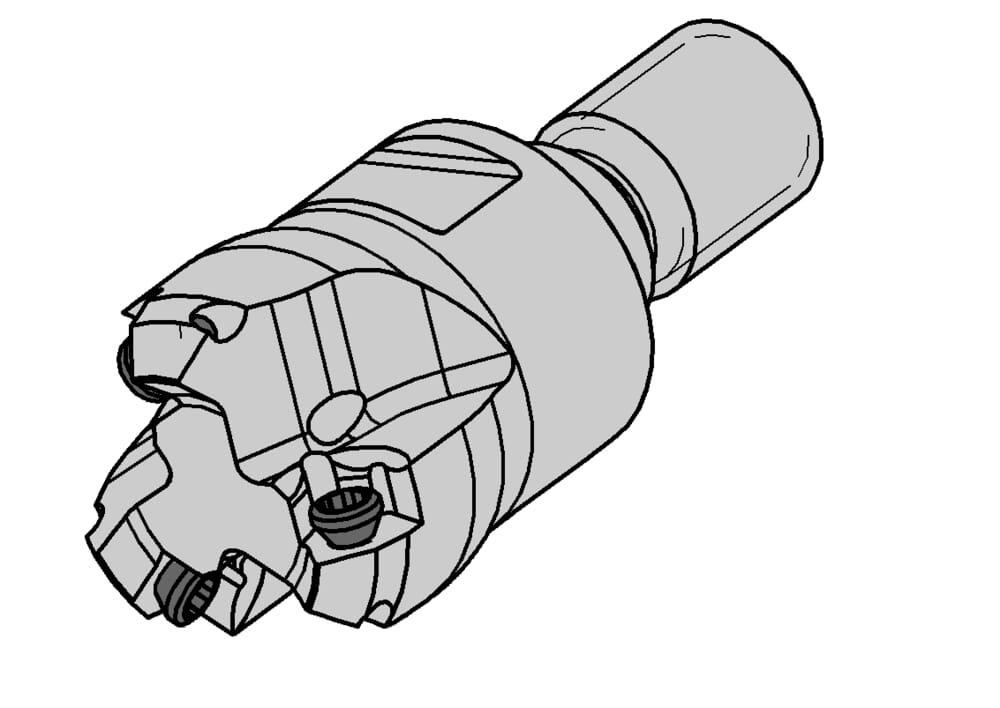

HORN Toolholder DAM31.414.M104.03B for Milling
Please note:Technical instructions
DIN_CCTWS
HORN-DA31203N
eclass-shortcut
21-18-08-90

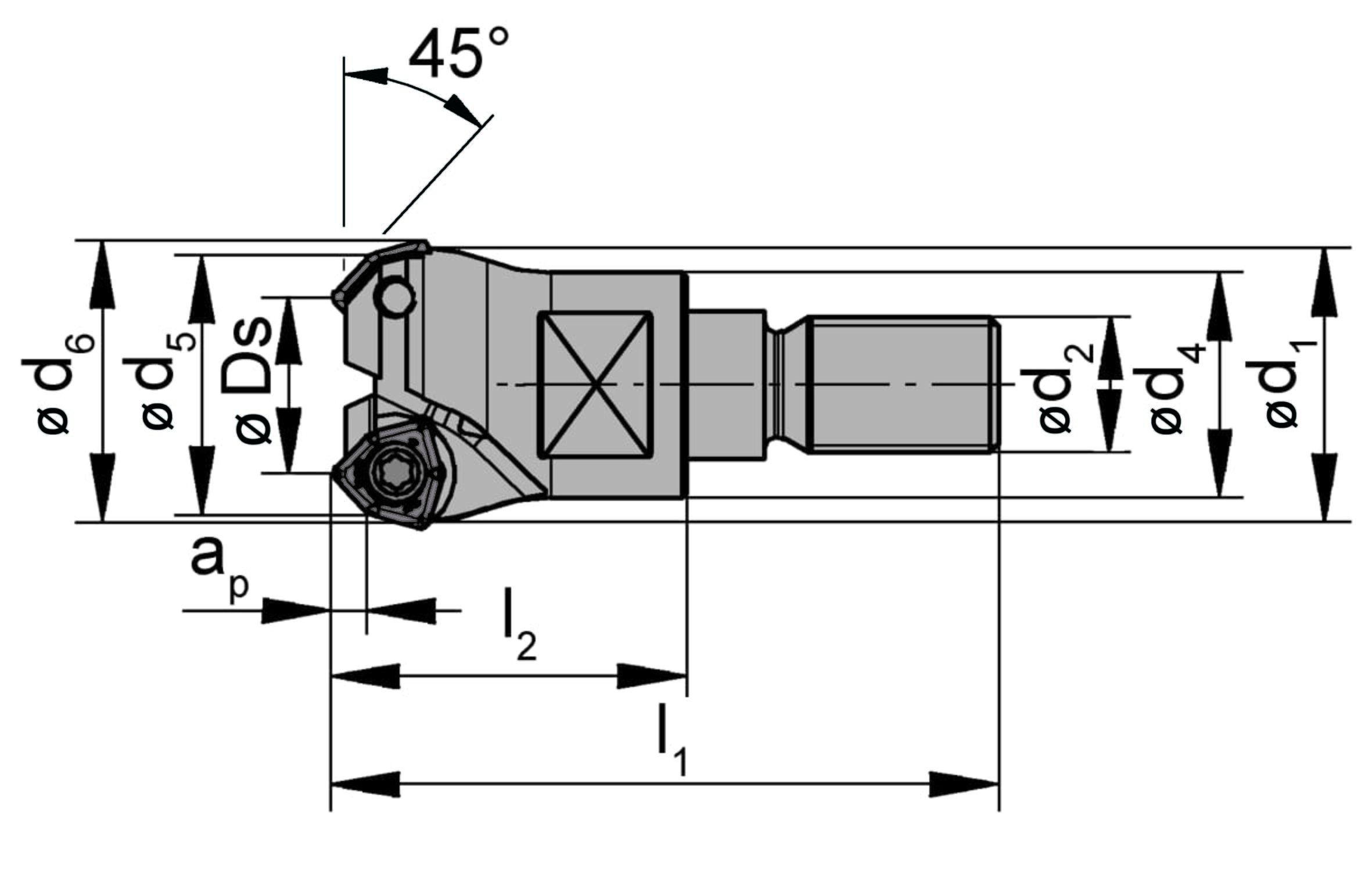

Maximum stepover (ap) (ap)
2
mm
Key range (SW)
15
mm
Neck diameter on stop (d4)
18
mm
Length from stop (l2)
25
mm
Total milling length with insert (l1)
45
mm
Katalog_CCTMS
10001
ISO_CCTMS
HORN01000105$$
DIN_CCTMS
HORN-01000105
Katalog_CCTWS
DA3120
ISO_CCTWS
HORNDA3120$$3N$$$$$
Diameter (d6)
20.9
mm
Diameter miller body (d1)
19.8
mm
Maximum cutting circle diameter (d5)
19
mm
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
14.4
mm
Screw thread (d2)
M10
| Downloads | |
|---|---|
| DAM31414M10403B_20240205_230129811.DXF | Download |
| DAM31414M10403B_20240118_123823600.STP | Download |
| Download all files | |
