R357.2525.05
Toolholder
Part number R357252505

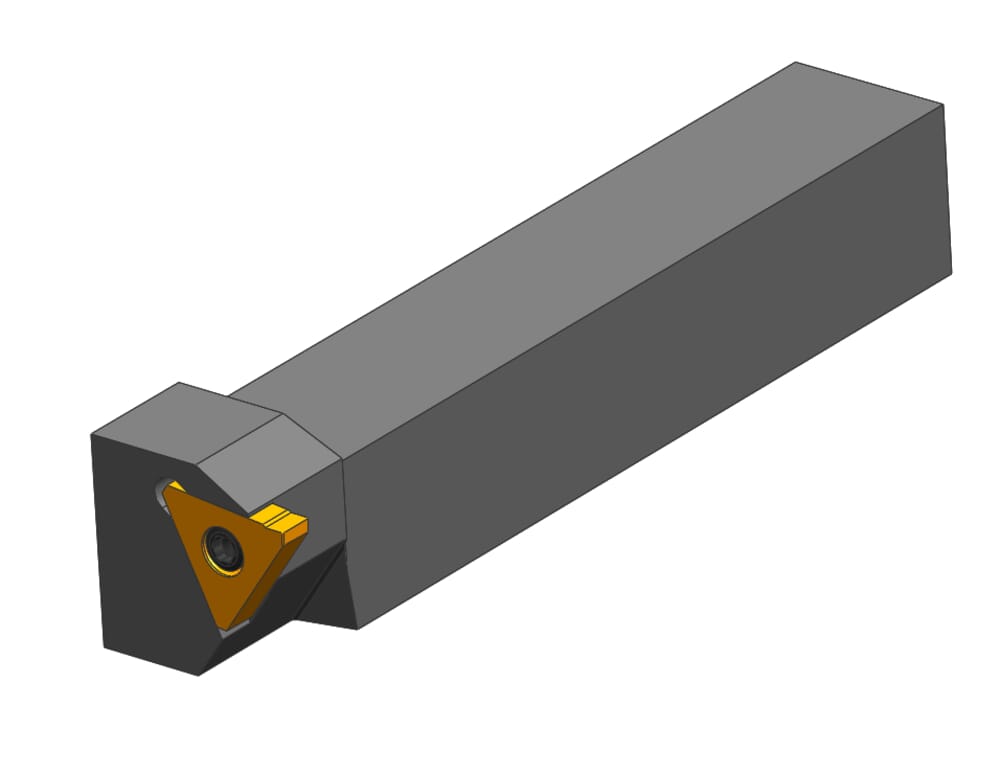

HORN Toolholder R357.2525.05 for Turning
Please note:Technical instructions

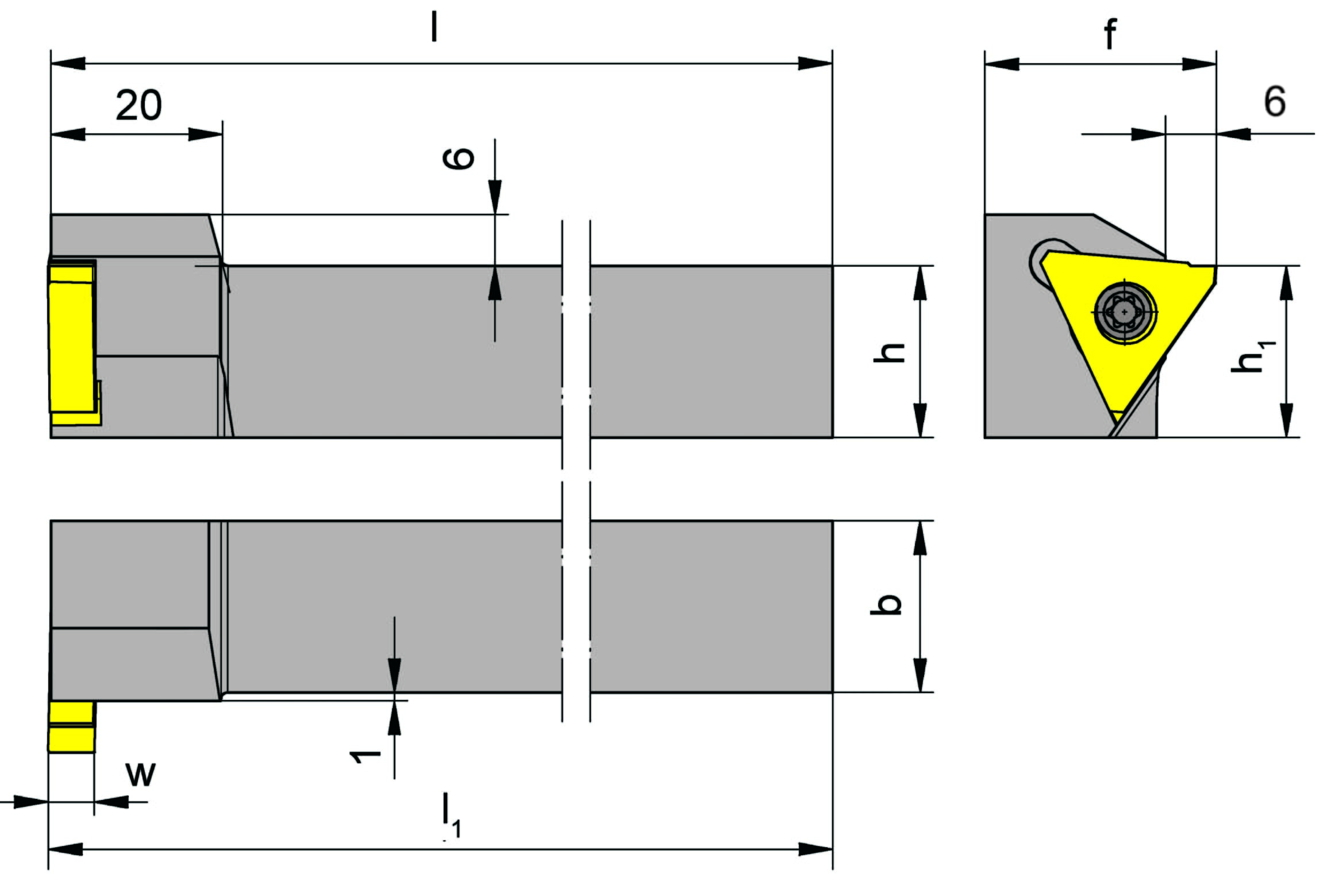

Peak height (h1)
25
mm
eclass-shortcut
21-18-10-90
Plating seat size (Größe)
5
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
31505L
DIN_CCTWS
HORN-31505051L
ISO_CCTWS
HORN31505$051L$$$$$
Shank height (h)
25
mm
Total length (without cutting insert) (l)
150
mm
Total length (including cutting insert) (l1)
150.3
mm
Adjustment dimension (f)
32
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| R357252505_20210629_214411607.DXF | Download |
| R357_2525_05_20171121_230034431.STP | Download |
| Download all files | |
