RH100.3208.Y.60.4.84.IK
Cartridge
Part number RH1003208Y60484IK

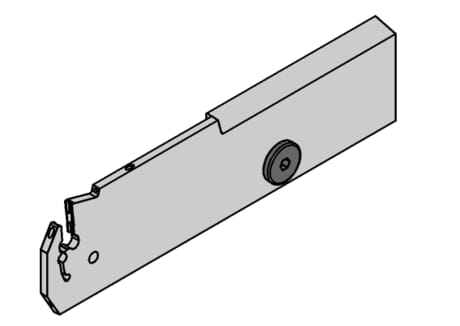

HORN Cartridge RH100.3208.Y.60.4.84.IK for Turning
Please note:Technical instructions

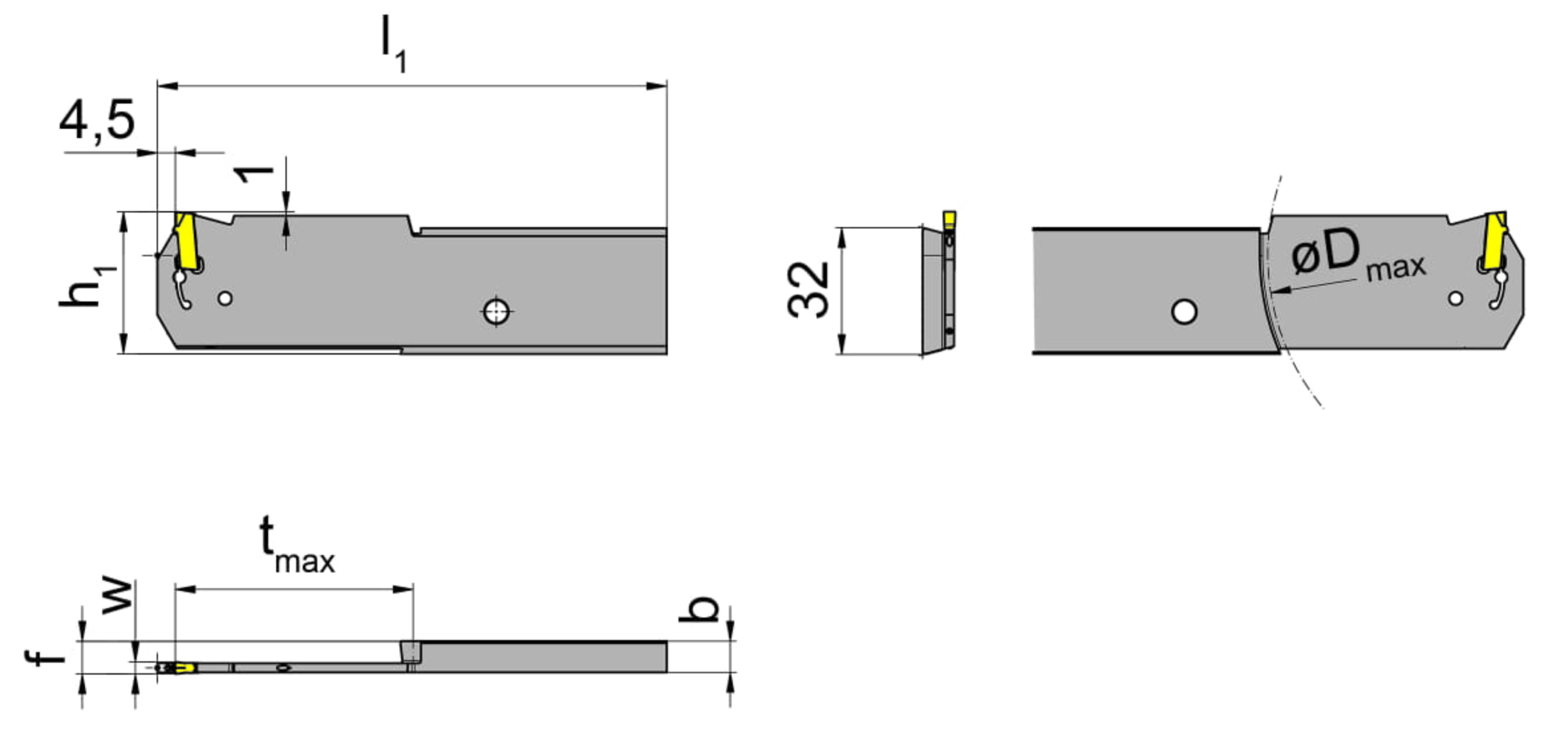

Peak height (h1)
36
mm
eclass-shortcut
21-18-10-90
Plating seat size (Größe)
4
ISO_CCTMS
PMU01C0320$$$$
DIN_CCTMS
PMU03200115
Katalog_CCTWS
100048
DIN_CCTWS
HORN-100040058N
ISO_CCTWS
HORN100040058N$$$$$
Maximum workpiece diameter (Dmax)
120
mm
Maximum insertion depth (tmax)
60
mm
Total length (including cutting insert) (l1)
128.5
mm
Adjustment dimension (f)
8.25
mm
Width / thickness sword (b)
7.9
mm
