S223.0200.52 TH35
Insert
Part number S223020052TH35

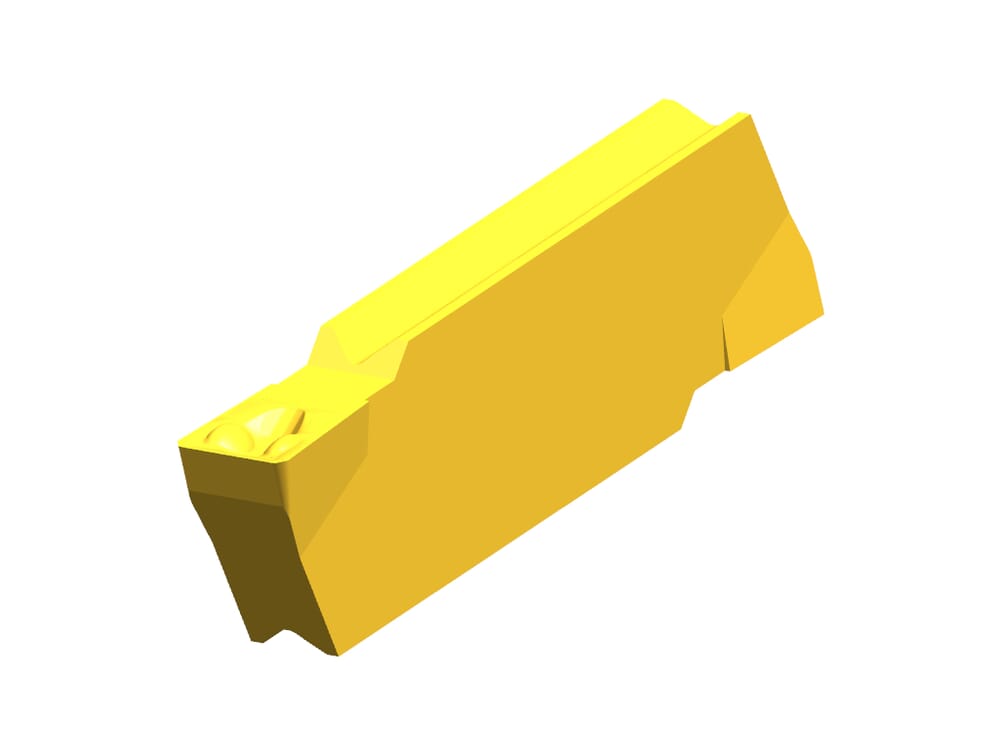

HORN Insert S223.0200.52 TH35 for Turning
Please note:Technical instructions
Peak height (h1)
3.65
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN223010008N$$$$$
DIN_SSC
HORN-223010008N
Katalog_SSC
22301
Plating seat size (Größe)
1
Width of groove (w)
2
mm
cutting-insert-width-met
1.6
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S223020052_20211125_111703013.DXF | Download |
| S223020052_20230116_213240403.STP | Download |
| Download all files | |
