S229.0400.32 AS66
Insert
Part number S229040032AS66

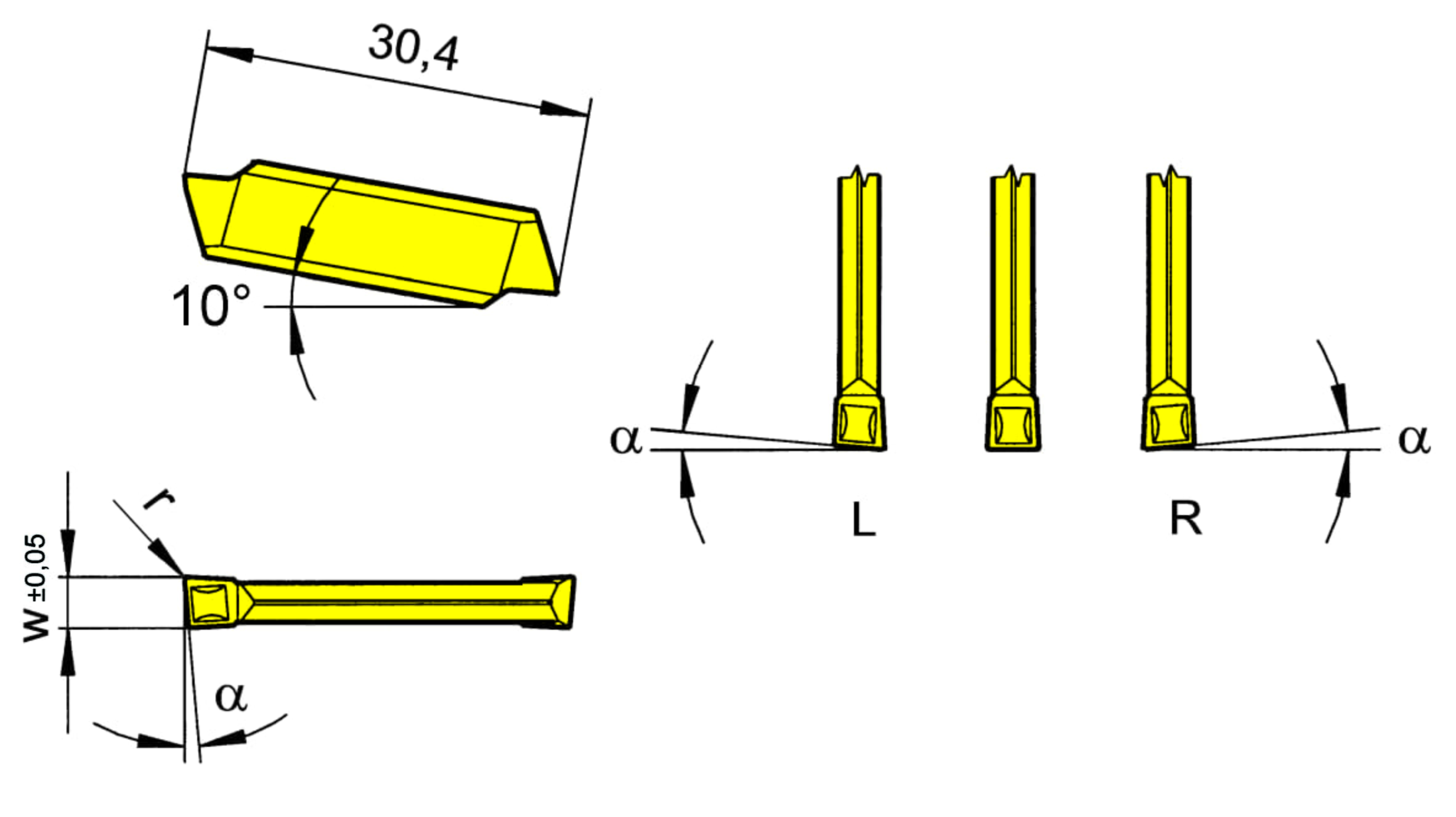

HORN Insert S229.0400.32 AS66 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN229030108N$$$$$;HORN229040108N$$$$$
DIN_SSC
HORN-229030108N;HORN-229040108N
Katalog_SSC
229030;229040
Plating seat size (Größe)
3;4
Width of groove (w)
4
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S229040032_20210629_065547121.DXF | Download |
| S229040032_20230116_085308458.STP | Download |
| Download all files | |
