306.0011.22 AS45

Inserts

Part number 306001122AS45

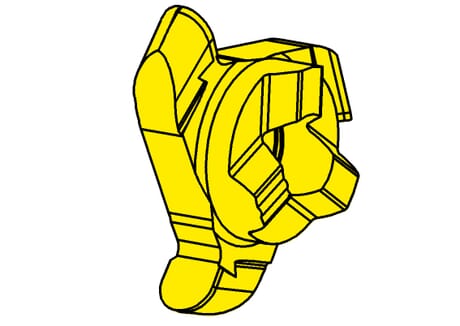

HORN Inserts 306.0011.22 AS45 for Milling

Cutting diameter (Ds)

11.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN306060$84R$$$$$

Katalog_SSC

306060R

plating-seat-size

Width of groove (w)

2.2 mm

Maximum milling depth/ depth of groove (tmax)

2.5 mm

Cutting insert thickness, setting length complete (s)

3.2 mm

Radius, full-radius (r)

1.1 mm
