306.4545.00 TF45
Inserts
Part number 306454500TF45

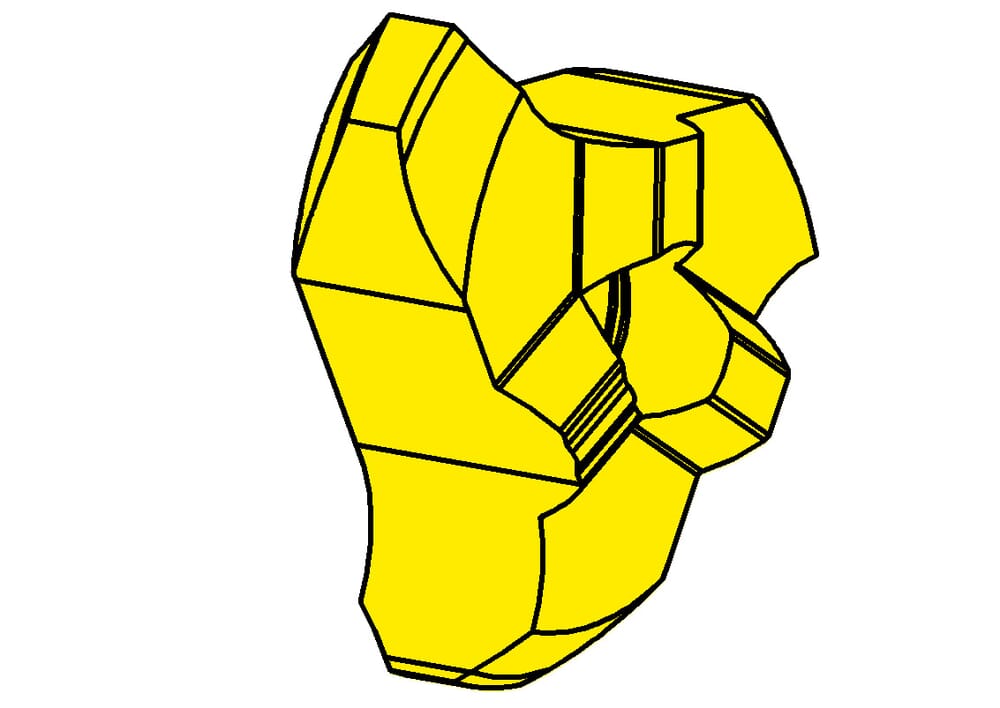

HORN Inserts 306.4545.00 TF45 for Milling
Please note:Technical instructions
DIN_SSC
HORN-30606084R
eclass-shortcut
21-18-20-11
Chamfer size (tmax)
0.8
mm
Setting length (E)
1.1
mm
Cutting insert thickness, setting length complete (s)
3.4
mm
Form (Form)
A
Width of groove (w)
1.2
mm
Katalog_SSC
306060R
ISO_SSC
HORN306060$84R$$$$$
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
11.7
mm
| Downloads | |
|---|---|
| 306_4545_00_20180430_143022967.DXF | Download |
| 306_4545_00_20180503_020043753.STP | Download |
| Download all files | |
