311.0011.22 AS45
Insert
Part number 311001122AS45

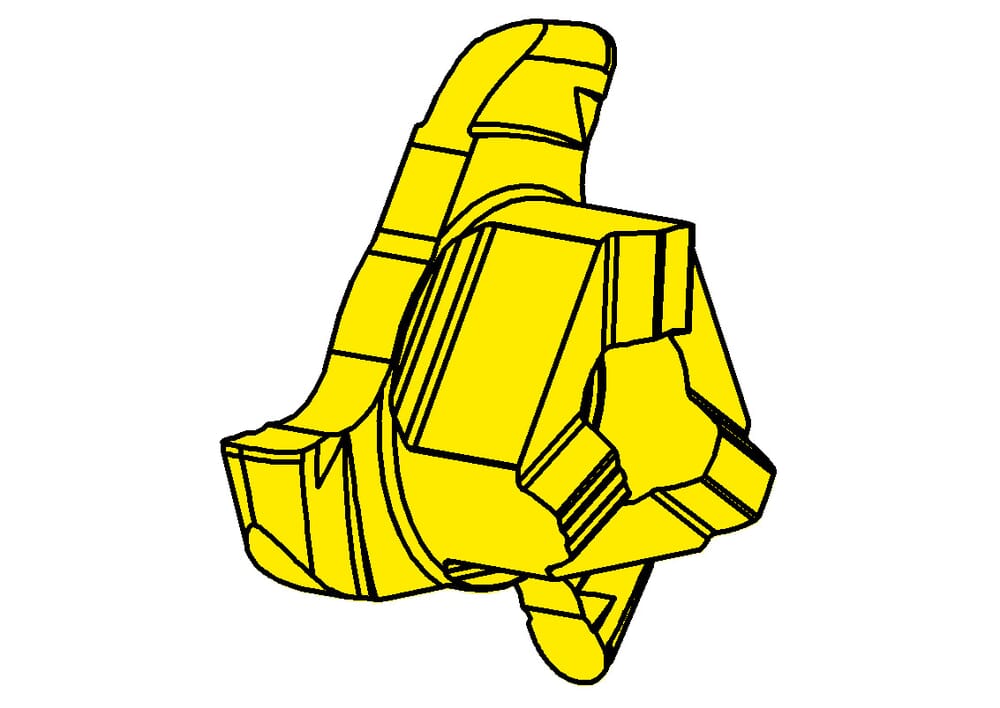

HORN Insert 311.0011.22 AS45 for Milling
Please note:Technical instructions
DIN_SSC
HORN31109084R
eclass-shortcut
21-18-20-11
Radius, full-radius (r)
1.1
mm
Cutting insert thickness, setting length complete (s)
5.75
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Width of groove (w)
2.2
mm
plating-seat-size
0
Katalog_SSC
311090R
ISO_SSC
HORN311090$84R$$$$$
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
17.7
mm
| Downloads | |
|---|---|
| 311_0011_22_20180430_143129241.DXF | Download |
| 311_0011_22_20180503_020050331.STP | Download |
| Download all files | |
