311.0011.22 TN35

Inserts

Part number 311001122TN35

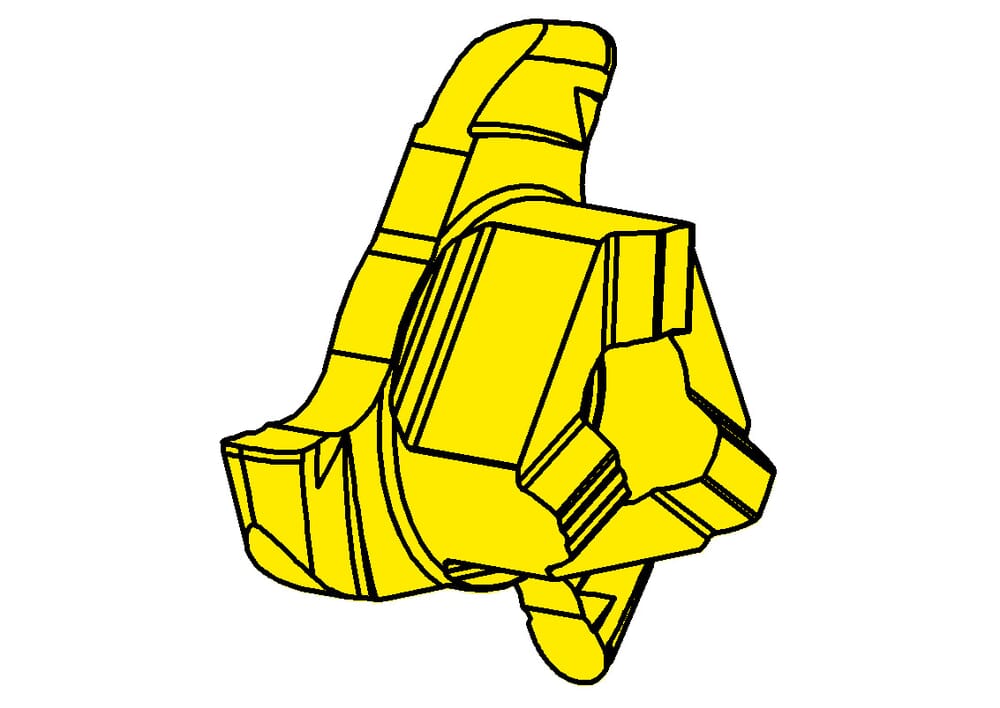

HORN Inserts 311.0011.22 TN35 for Milling

Please note:Technical instructions

Cutting diameter (Ds)

17.7 mm

Number of teeth (Z)

3 St.

ISO_SSC

HORN311090$84R$$$$$

Katalog_SSC

311090R

plating-seat-size

Width of groove (w)

2.2 mm

Maximum milling depth/ depth of groove (tmax)

3.5 mm

Cutting insert thickness, setting length complete (s)

5.75 mm

Radius, full-radius (r)

1.1 mm

Downloads
311_0011_22_TN35-ISO.XML	Download
311_0011_22_TN35-DXF.DXF	Download
311_0011_22_TN35-STP.STP	Download
311_0011_22_TN35-DIN.XML	Download
Download all files
