311.4545.00 TN35
Inserts
Part number 311454500TN35

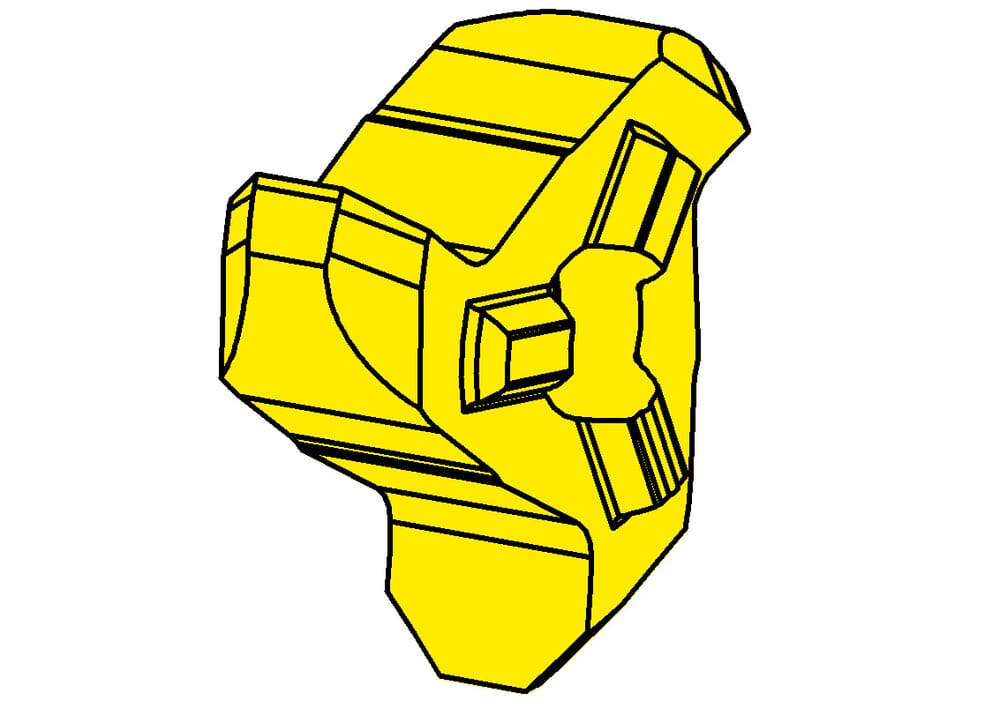

HORN Inserts 311.4545.00 TN35 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
17.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN311090$84R$$$$$
Katalog_SSC
311090R
Width of groove (w)
2.5
mm
Form (Form)
A
Cutting insert thickness, setting length complete (s)
5.95
mm
Setting length (E)
1.7
mm
Chamfer size (tmax)
1.4
mm
| Downloads | |
|---|---|
| 311_4545_00_TN35-ISO.XML | Download |
| 311_4545_00_TN35-DXF.DXF | Download |
| 311_4545_00_TN35-STP.STP | Download |
| 311_4545_00_TN35-DIN.XML | Download |
| Download all files | |
