382.0200.50.08

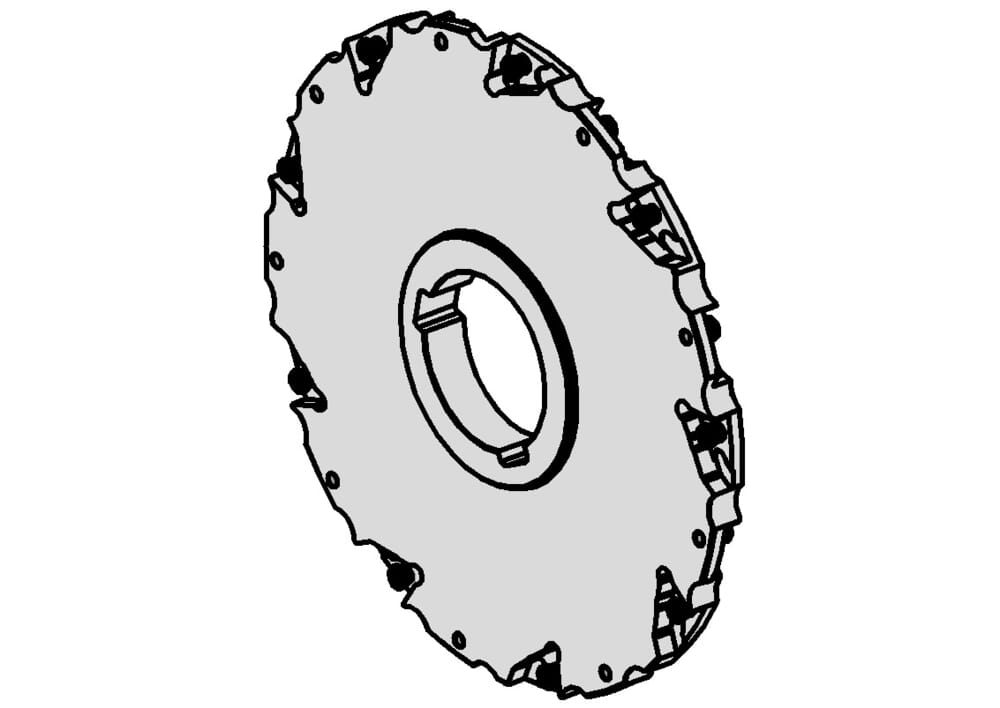

Disk milling cutter

Part number 38202005008

HORN Disk milling cutter 382.0200.50.08 for Milling

Katalog_CCTWS

314041R;314041L

eclass-shortcut

21-18-09-06

Total width with drive rings (b2)

12 mm

Maximum milling depth/ depth of groove (tmax)

63.5 mm

Left hand indexable insert (linke WSP)

9x L314...

Right hand indexable insert (rechte WSP)

9x R314...

Cutting width maximum (w)

8 mm

Mounting hole diameter (d2)

50 mm

ISO_CCTMS

FDA01G5000$$$$

DIN_CCTMS

FDA05000100

DIN_CCTWS

HORN-314041101R;HORN-314041101L

ISO_CCTWS

HORN314041101R$$$$$;HORN314041101L$$$$$

Number of teeth (Z)

9 St.

Bore diameter miller body (d3)

71 mm

Cutting diameter (Ds)

200 mm
