611.0815.02 AS45
Insert
Part number 611081502AS45
HORN Insert 611.0815.02 AS45 for Gewinden
Please note:Technical instructions

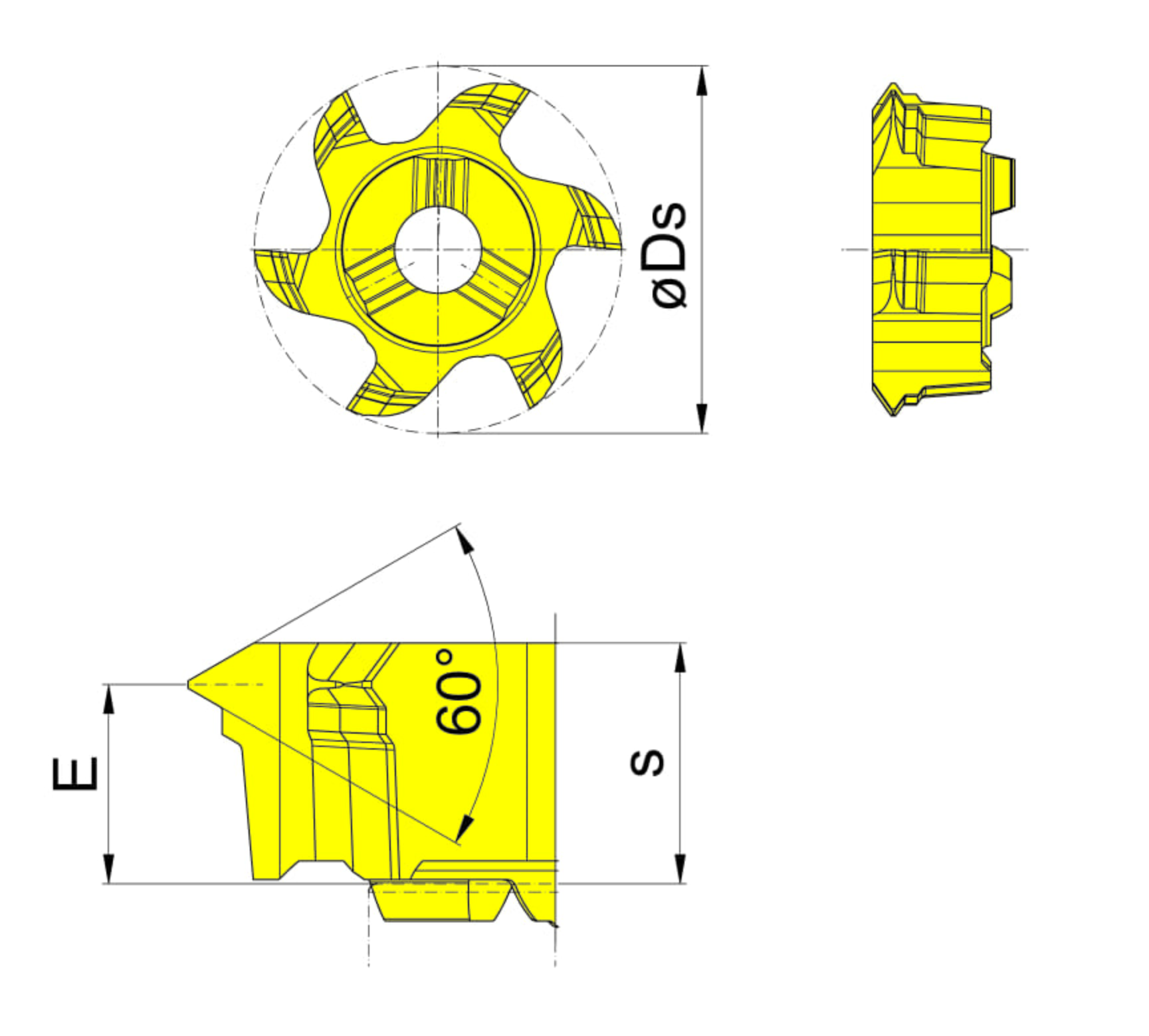

Cutting diameter (Ds)
17.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Setting length (E)
4.8
mm
Cutting insert height, Cutting insert thickness (s)
5.95
mm
Pitch (P)
1.5
mm
| Downloads | |
|---|---|
| 611081502_20210627_134301753.DXF | Download |
| 611081502_20230112_143552191.STP | Download |
| Download all files | |
