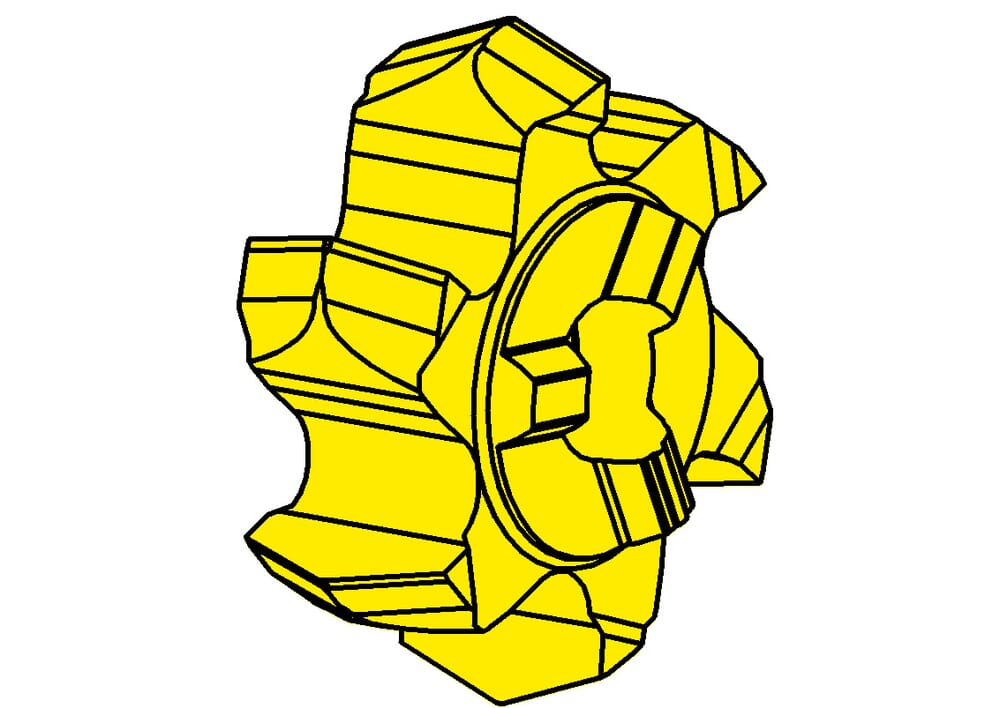

611_2020_20_TA45-PICTO.TIF
611_2020_20_TA45-PICTO.TIF 611202020.TIF

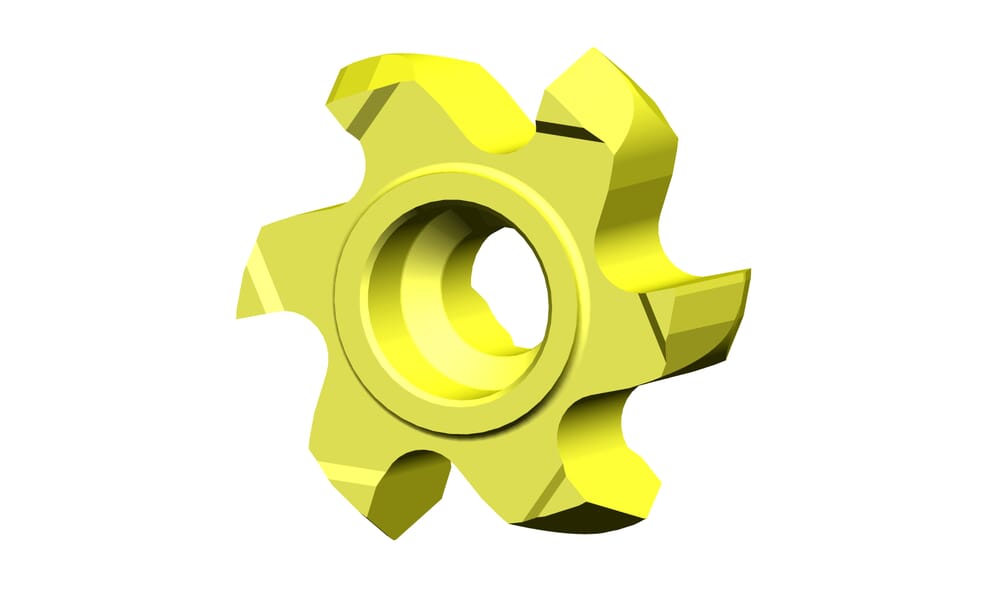

611.2020.20 TA45

Insert

FASEN.EPS VERZAHNUNG_FRAESEN.EPS AUSSEN_EINSTECHEN_GEWINDEFREISTICH.EPS ZAEHNEZAHL_Z6.EPS

Part number 611202020TA45

HORN Insert 611.2020.20 TA45 for Milling

Please note:Technical instructions

Cutting diameter (Ds)
17.7 mm
Number of teeth (Z)
6 St.
ISO_SSC
HORN311090$84R$$$$$
Katalog_SSC
311090R
Width of groove (w)
0.2 mm
Cutting insert thickness, setting length complete (s)
6.3 mm
Setting length (E)
3.2 mm
Chamfer size (tmax)
1 mm
Angle of chamfer (α)
20 °
Chamfer with maximum (b)
2.8 mm
Downloads
611_2020_20_TA45-DXF.DXF Download
611_2020_20_TA45-ISO.XML Download
611_2020_20_TA45-STP.STP Download
611_2020_20_TA45-DIN.XML Download
Download all files
