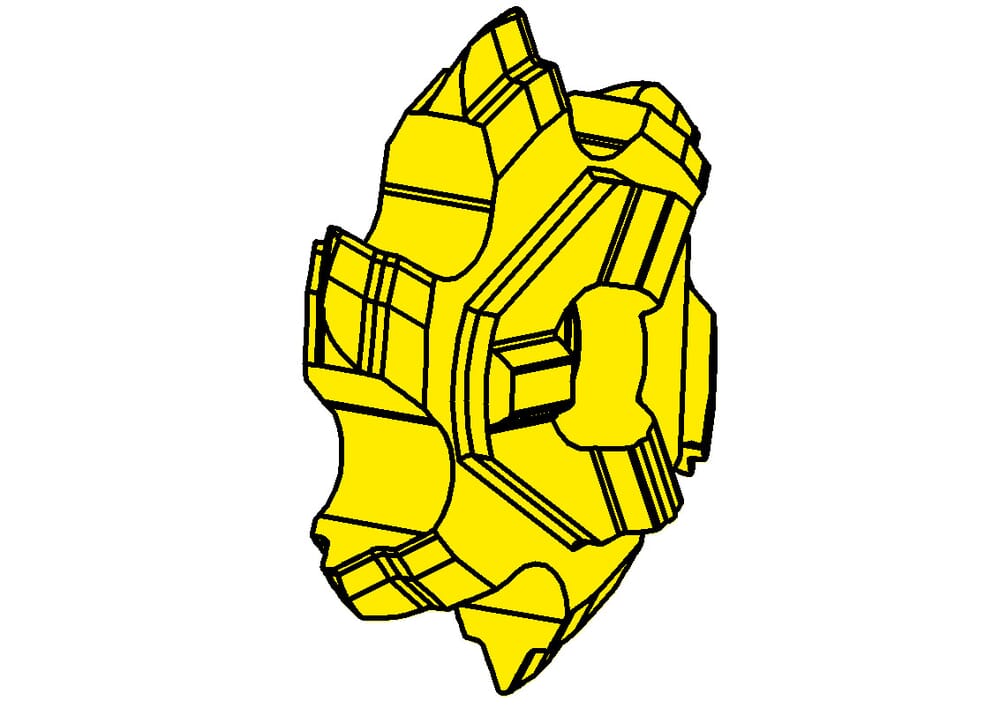

613_5511_02_AS45-PICTO.TIF

613.5511.02 AS45

Insert

GEWINDE_VOLLPROFIL.EPS GEWINDE_TEILPROFIL.EPS GEWINDE_INNEN_FRAESEN.EPS GEWINDE_WITHWORTH.EPS ZAEHNEZAHL_Z6.EPS

Part number 613551102AS45

HORN Insert 613.5511.02 AS45 for Gewinden

Please note:Technical instructions

Cutting diameter (Ds)
21.7 mm
Number of teeth (Z)
6 St.
Threads per inch (TPI)
11
eclass-shortcut
21-18-20-11
ISO_SSC
HORN313113$84R$$$$$
Katalog_SSC
313113R
Setting length (E)
3.4 mm
Cutting insert height, Cutting insert thickness (s)
5.4 mm
Downloads
613_5511_02_AS45-ISO.XML Download
613_5511_02_AS45-DXF.DXF Download
613_5511_02_AS45-STP.STP Download
613_5511_02_AS45-DIN.XML Download
Download all files
