635.3972.275.8 AS45

Insert

Part number 63539722758AS45

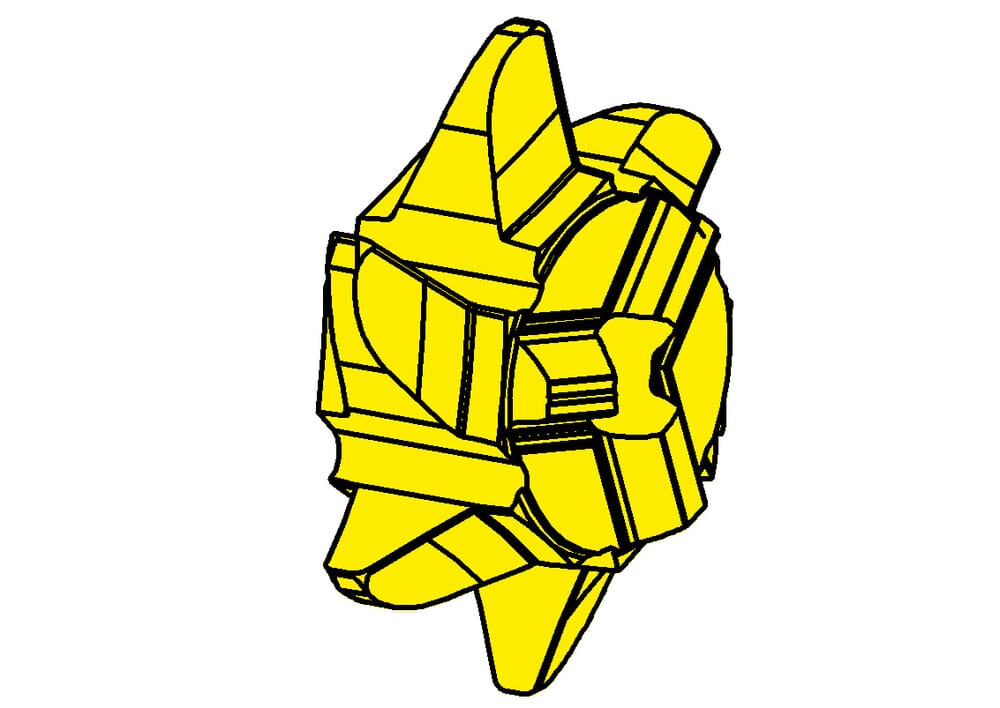

HORN Insert 635.3972.275.8 AS45 for Milling

eclass-shortcut

21-18-20-11

Cutting insert height, Cutting insert thickness (s)

11.9 mm

Setting length (E1)

5.5 mm

Maximum milling depth (tmax)

6.1 mm

Katalog_SSC

335175R

DIN_SSC

HORN33517584R

ISO_SSC

HORN635715$84R$$$$$

Number of teeth gear wheel maximum (zmax)

999 St.

Number of teeth gear wheel minimum (zmin)

135 St.

Module (Modul)

2.75 mm

number-of-teeth

6 St.

Cutting diameter (Ds)

34.7 mm
