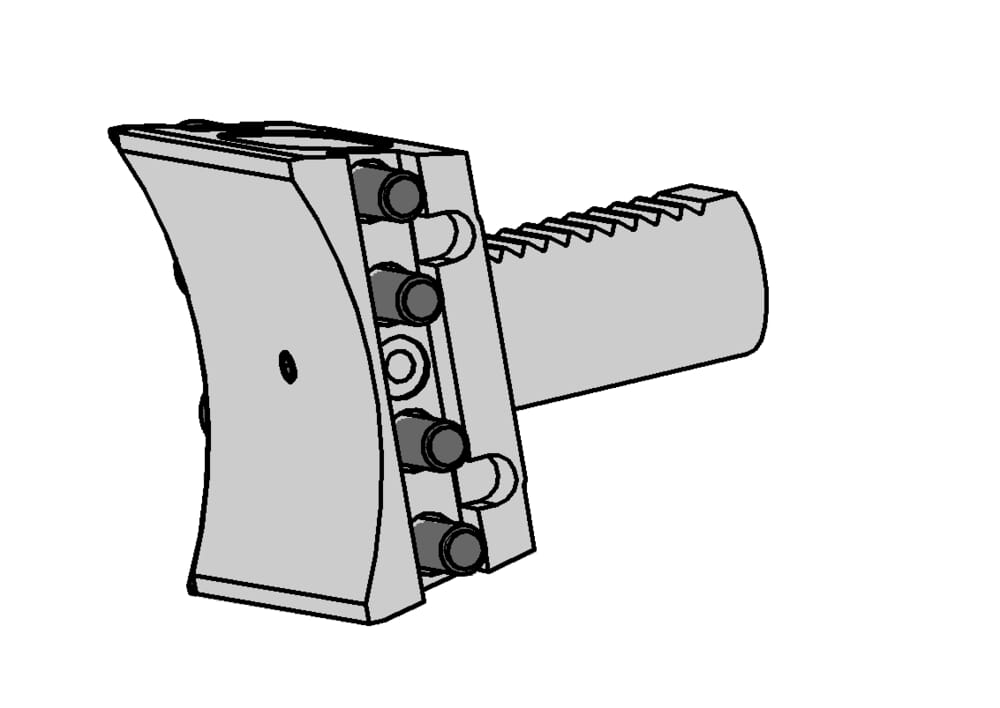

VDI base holder
Part number 960VDI40C000101
HORN VDI base holder 960.VDI40.C0.00101 for Turning
Please note:Technical instructions
dim-facing-system-to-radius-basic-holer-met
23
mm
eclass-shortcut
21-18-10-18
Katalog_CCTMS
VDI40
ISO_CCTMS
ZYV01C0400$$$$
DIN_CCTMS
ZYV04000115
Katalog_CCTWS
FN12
basic-holder-height-met
84
mm

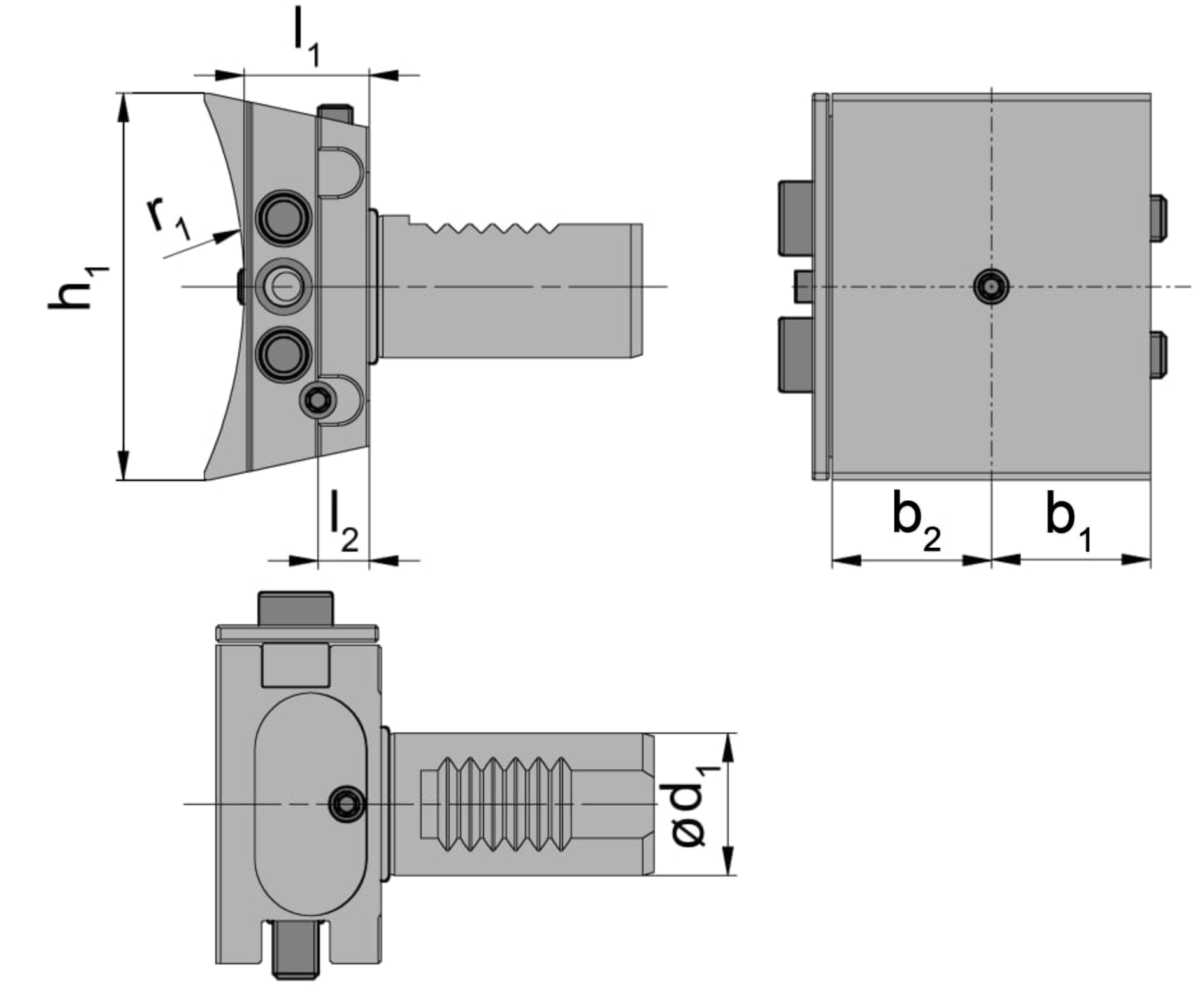

Radius basic holder (r1)
80
mm
Dimension center to left side holder (b2)
40
mm
Dimension center to right side holder (b1)
40
mm
Dimension machine end to locating face grooving holder (l2)
9
mm
Shank diameter (d1)
40
mm
| Downloads | |
|---|---|
| 960VDI40C000101.DXF | Download |
| Download all files | |
