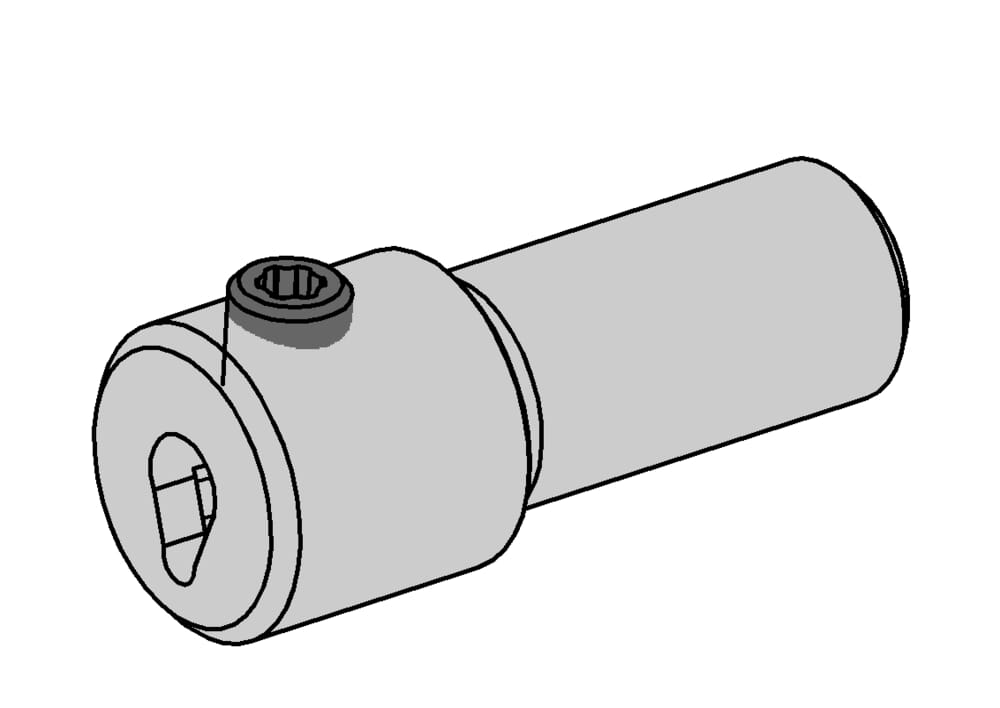

B105.0012.0220
Toolholder
Part number B10500120220
HORN Toolholder B105.0012.0220 for Broaching
Please note:Technical instructions

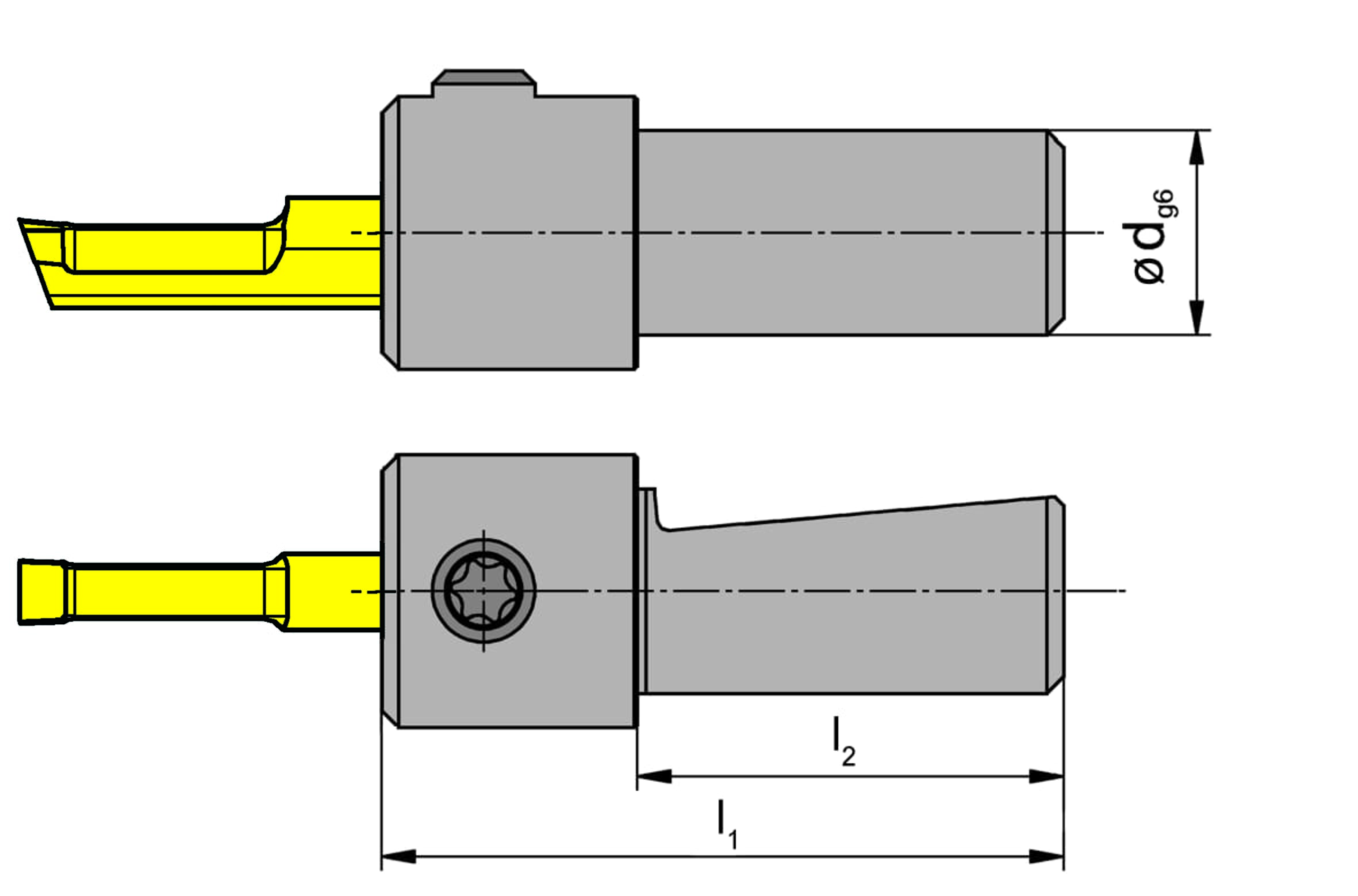

Shank length (l2)
25
Minimum drilling diameter (Dmin)
6
mm
Clamping, shank diameter (d)
12
mm
ISO_CCTWS
HORN105125$85N$$$$$
DIN_CCTWS
HORN-10512585N
Katalog_CCTWS
105125
Katalog_CCTMS
Schwarzer
Total length (l1)
40
mm
eclass-shortcut
21-18-10-90
| Downloads | |
|---|---|
| B105001202_20210627_121913590.DXF | Download |
| B105_0012_02_20171121_175941725.STP | Download |
| Download all files | |
