C6.2020.01.IK
base support
Part number C6202001IK

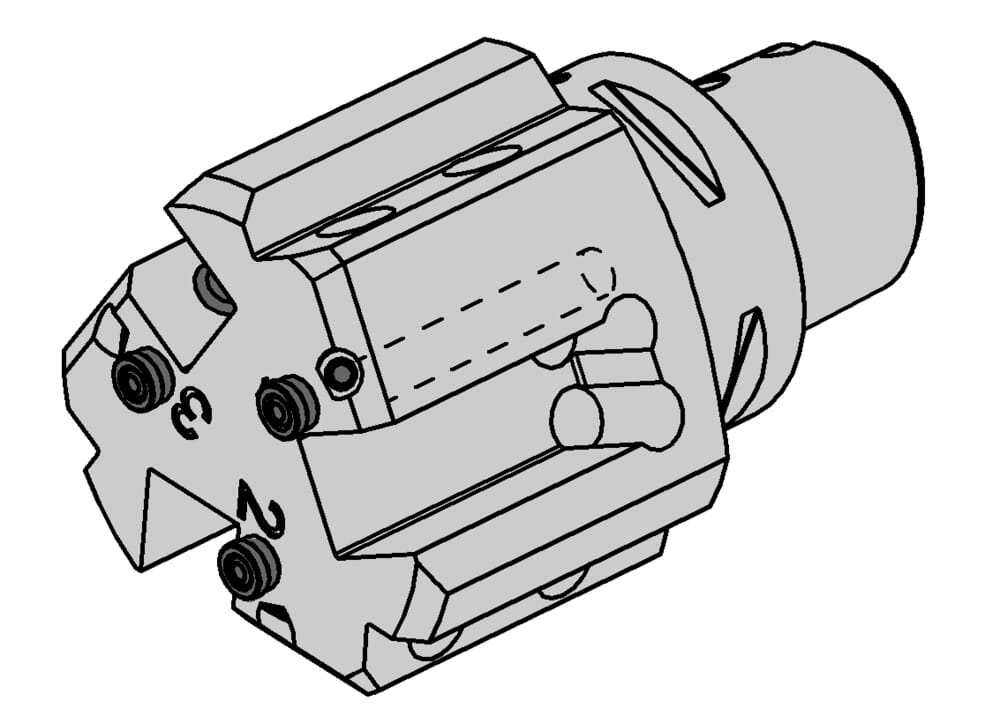

HORN base support C6.2020.01.IK for Turning
Please note:Technical instructions

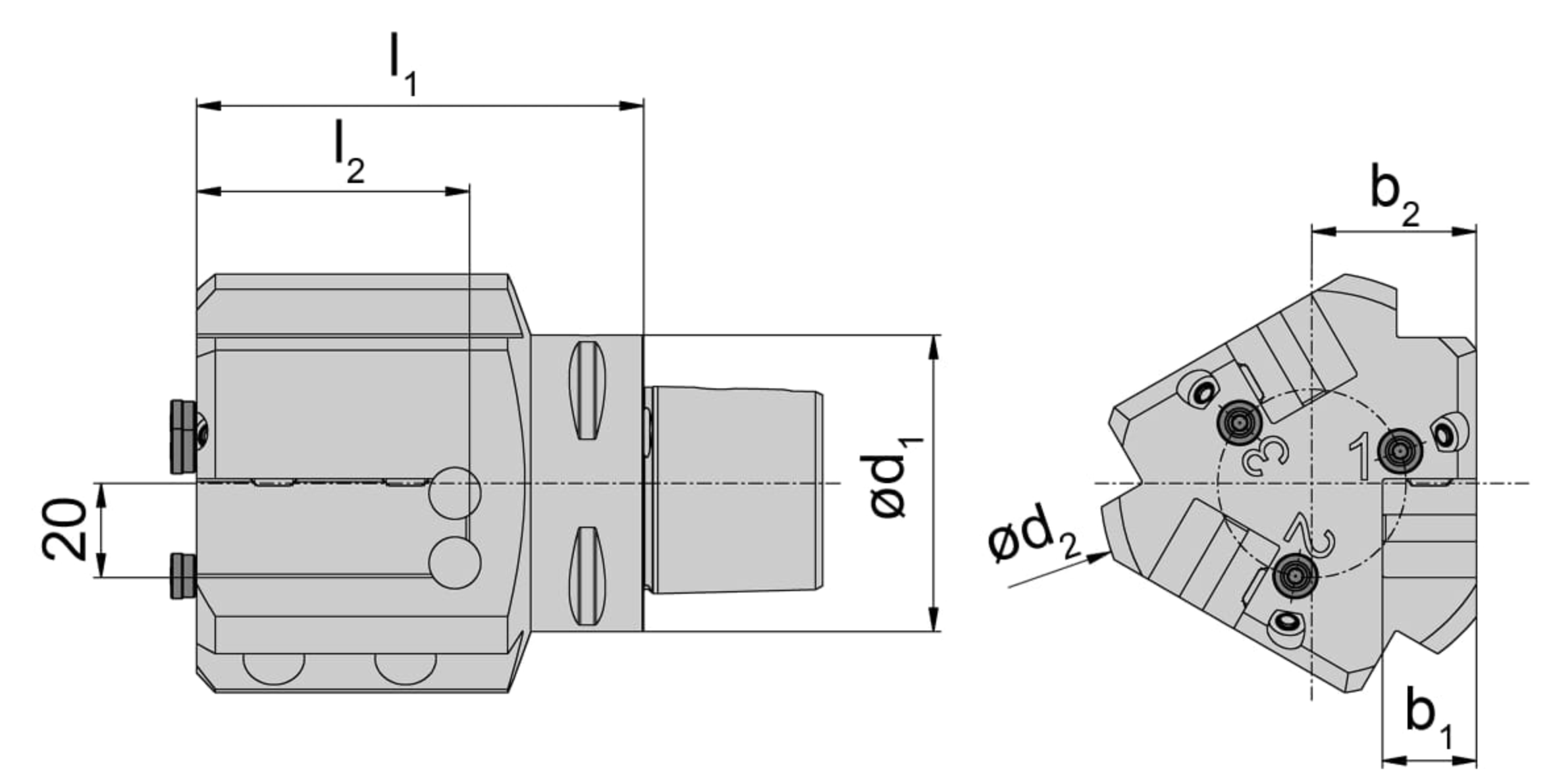

Shank width (b1)
20
mm
Bore diameter rotate (d1)
63
mm
Maximum clamping length (l2)
58
mm
External diameter (d2)
90
Dimension center to outer edge holder (b2)
35
mm
ISO_CCTWS
VKT01A2020$$$$;VKT01A2020$$$$;VKT01A2020$$$$
DIN_CCTWS
VKT20200105;VKT20200105;VKT20200105
Total length (l1)
95
mm
| Downloads | |
|---|---|
| C6202001IK.STP | Download |
| Download all files | |
