M308.0012.01B
Toolholders
Part number M308001201B

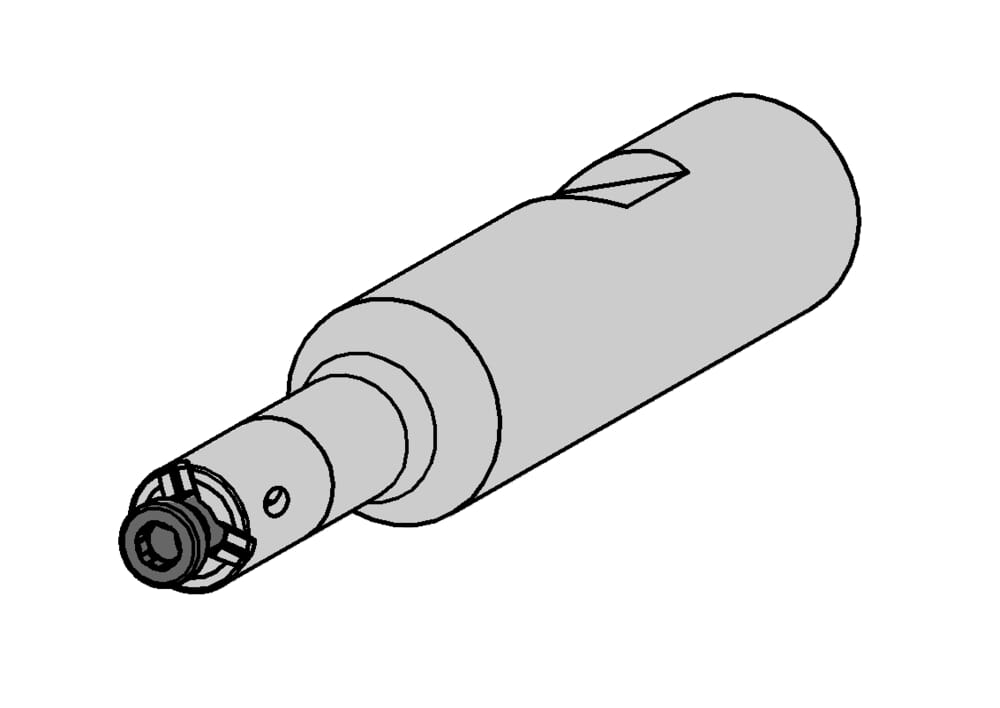

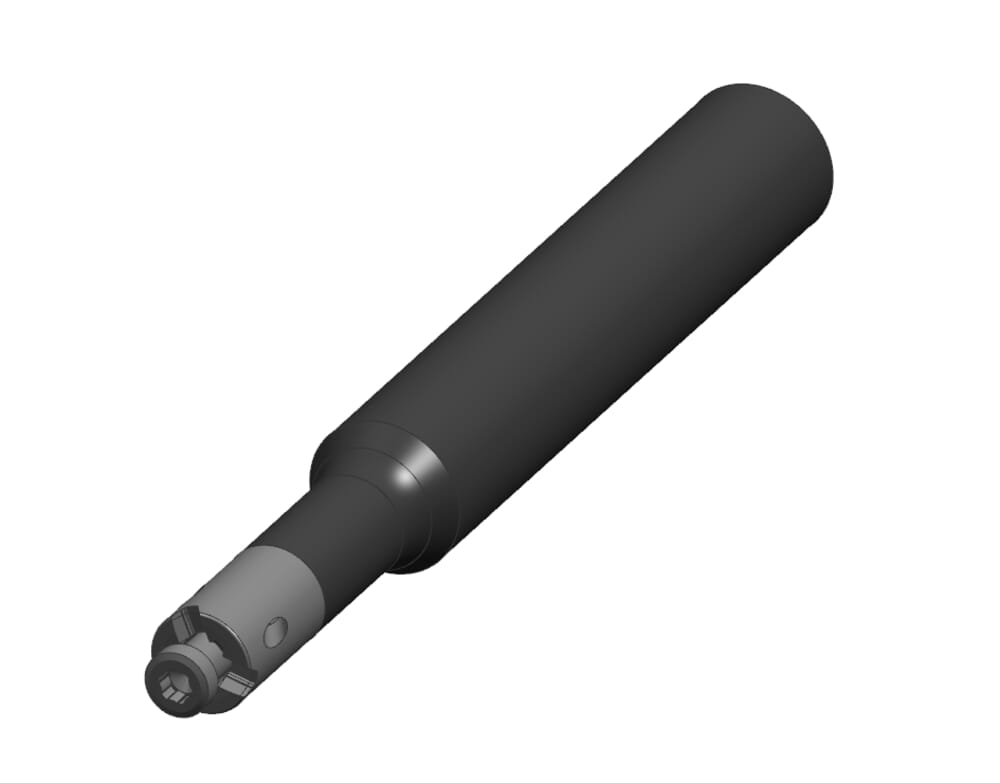

HORN Toolholders M308.0012.01B for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL01201015
eclass-shortcut
21-18-08-90
Form (Form)
HB

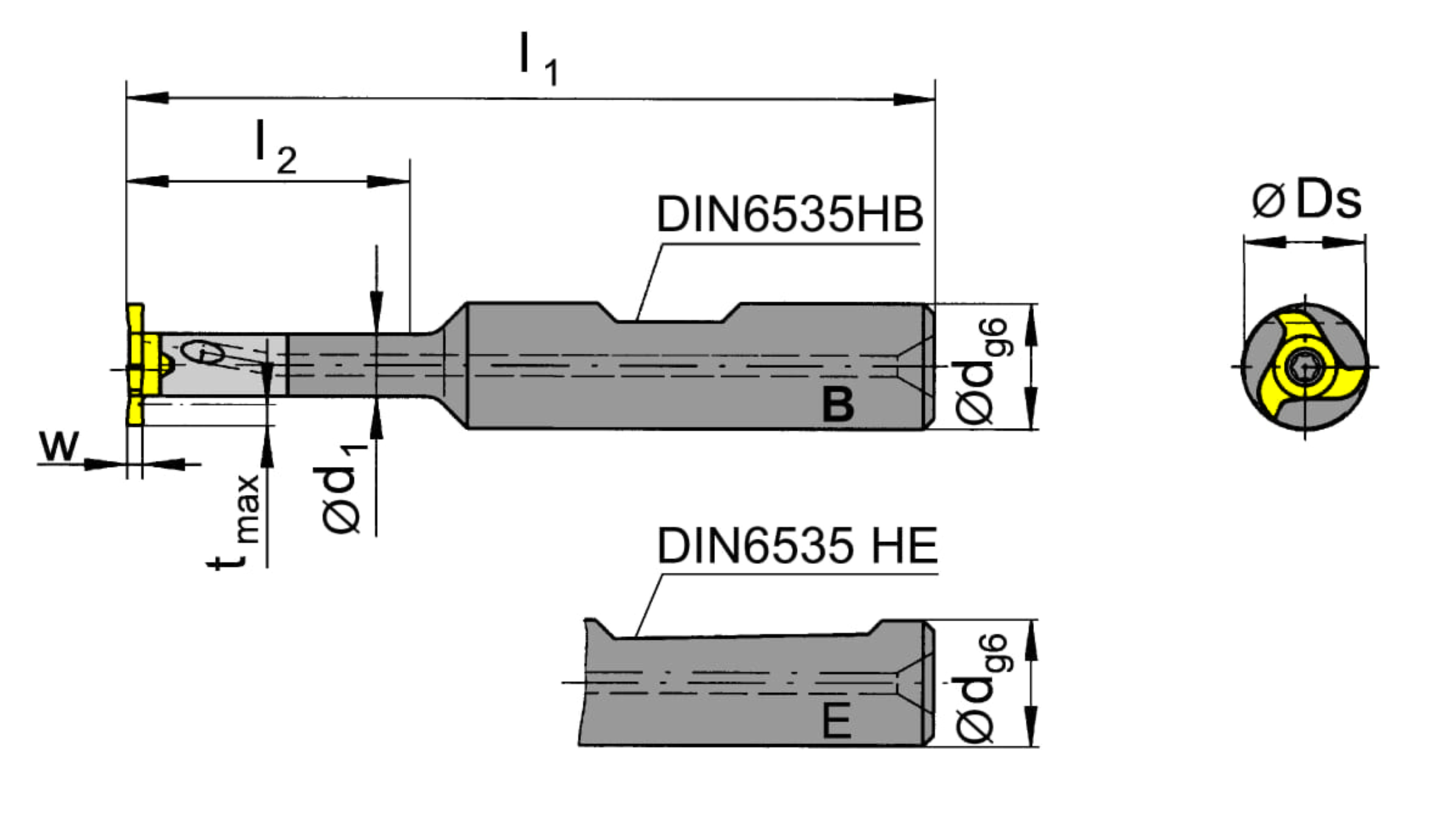

Working length, Neck length, Extension length (l2)
29
mm
Total length insert (l1)
95
mm
Cone diameter (d)
12
mm
Neck diameter (d1)
8
mm
ISO_CCTMS
ZYL10G1200h$06
Katalog_CCTWS
308080R;308080L
DIN_CCTWS
HORN30808084R;HORN30808084L
ISO_CCTWS
HORN308080$84R$$$$$;HORN308080$84L$$$$$
Shank diameter (d)
12
mm
| Downloads | |
|---|---|
| M308001201B_20210628_163533429.DXF | Download |
| M308_0012_01B_20171121_205204169.STP | Download |
| Download all files | |
