N849.0117L.10.00
Part number N8490117L1000

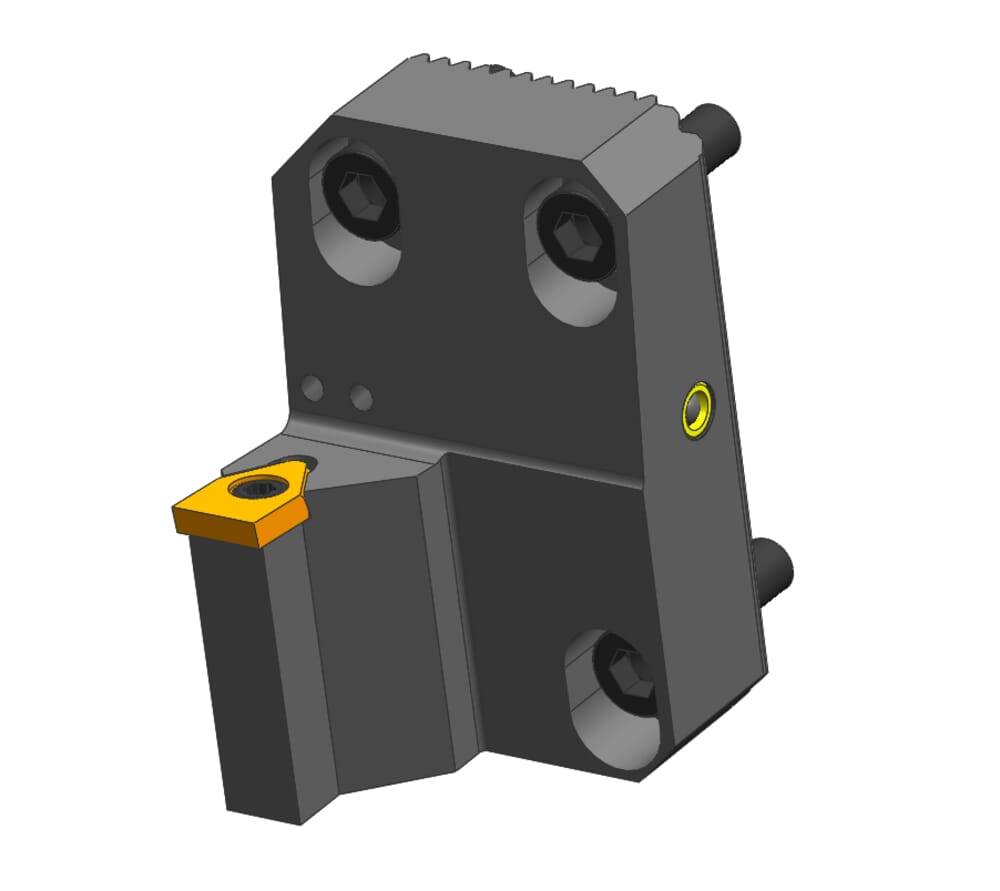

HORN N849.0117L.10.00 for Turning
Please note:Technical instructions
Width (b)
43
mm
Adjustment dimension from center (f)
22
mm
Total length with cutting edge (l1)
40
mm
Height (h)
68
mm
ISO_CCTWS
HORN117101050N$$$$$
DIN_CCTWS
HORN-117101050N
Katalog_CCTWS
1171005
Katalog_CCTMS
Schütte
eclass-shortcut
21-02-90-90
| Downloads | |
|---|---|
| N8490117L1000_20210629_174214206.DXF | Download |
| N849_0117L_10_00_20171121_180231946.STP | Download |
| Download all files | |
