R105.1802.0.02 MG12
Insert
Part number R1051802002MG12

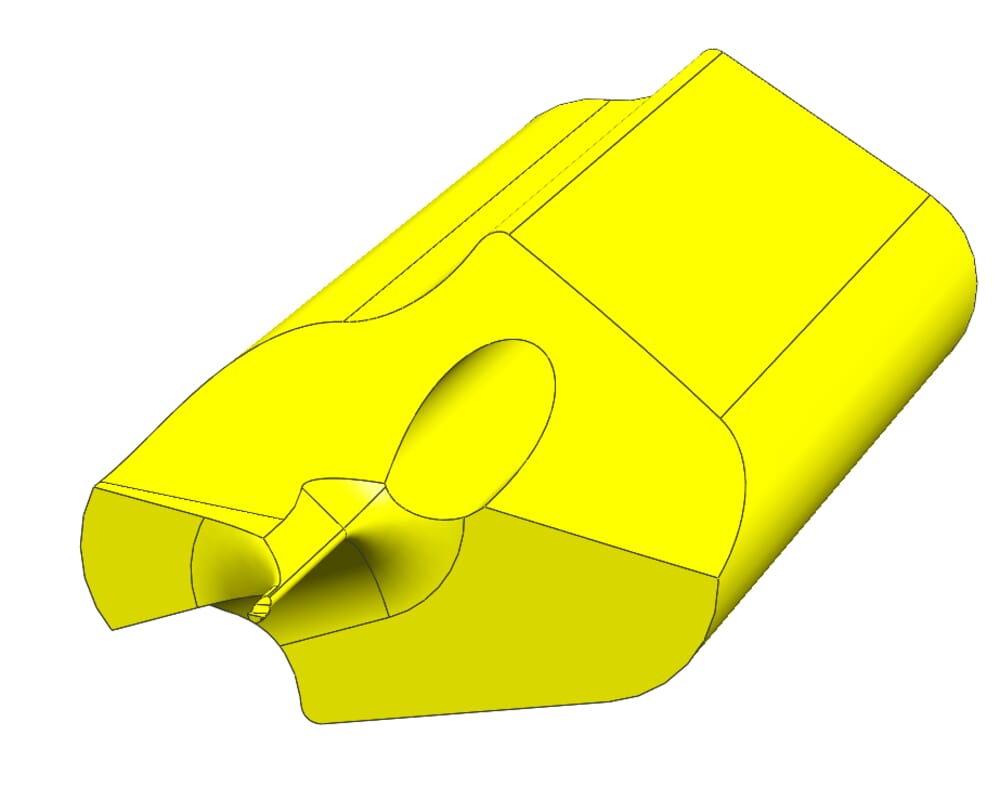

HORN Insert R105.1802.0.02 MG12 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
0.2
mm
Total length (l5)
23
mm
Setting range radial (f)
1
mm
Form (Form)
B
Katalog_SSC
105123
DIN_SSC
HORN-10512395N
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9
mm
Maximum depth of groove (tmax)
0.02
mm
Head size (a)
0.17
mm
Top radius (r)
0.02
mm
Neck length (l2)
1
mm
| Downloads | |
|---|---|
| R1051802002_20210626_033649719.DXF | Download |
| R1051802002_20230113_231332039.STP | Download |
| Download all files | |
