R105.VR07.1.5.H5.P PD75
Insert
Part number R105VR0715H5PPD75

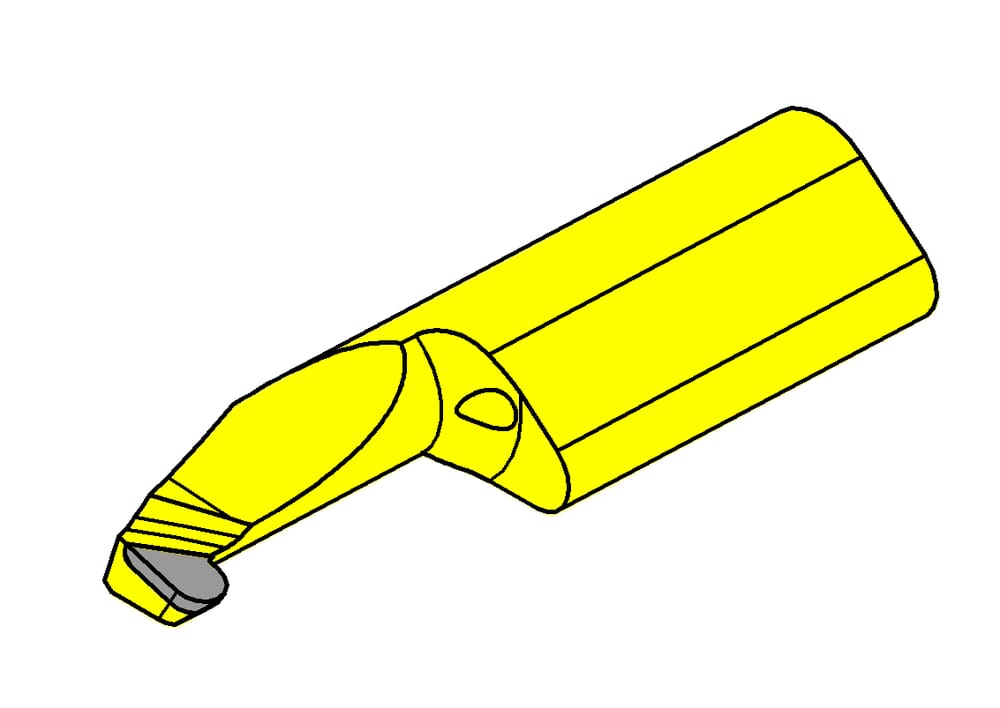

HORN Insert R105.VR07.1.5.H5.P PD75 for Turning
Please note:Technical instructions

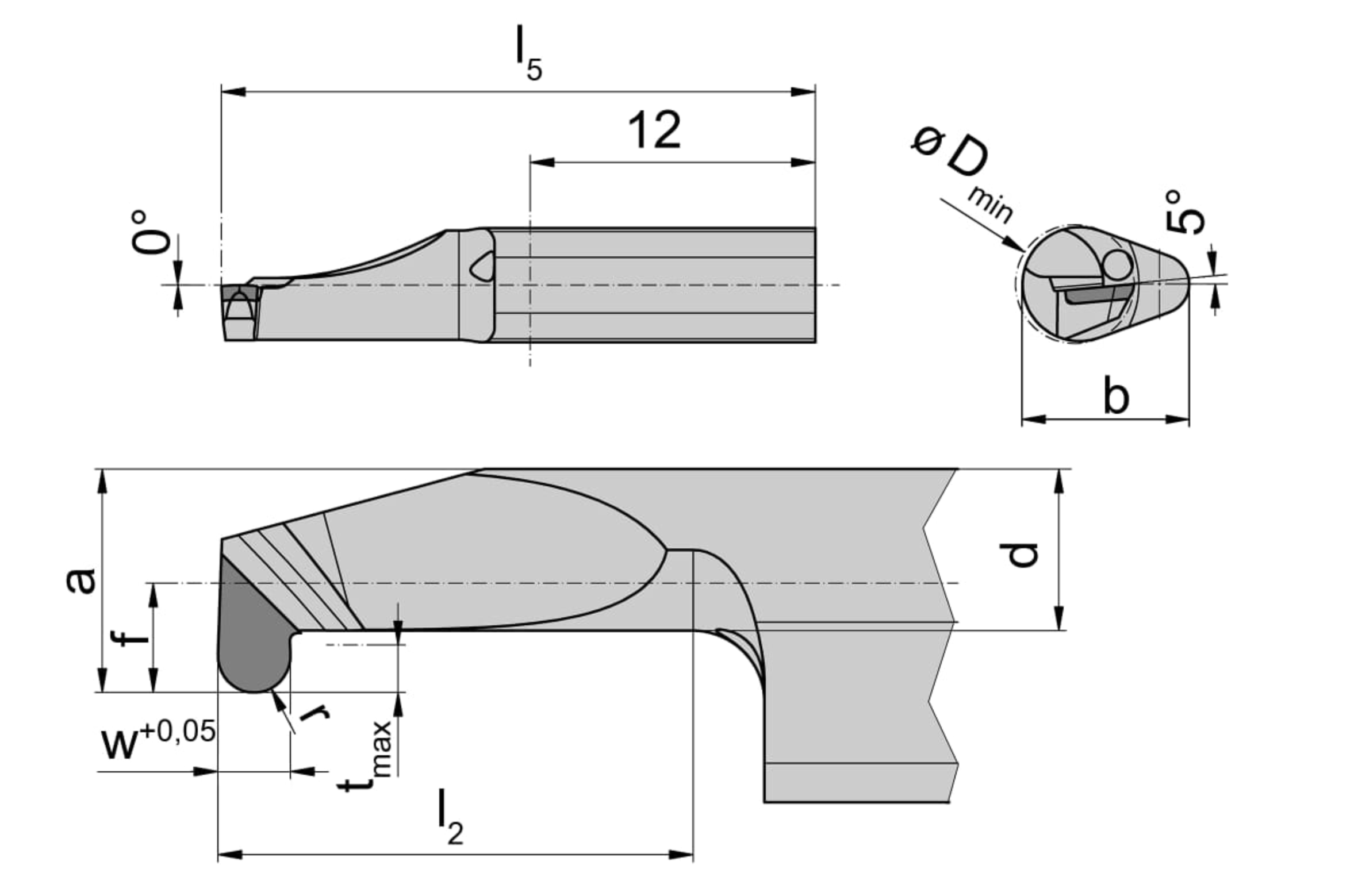

Width of blank (b)
7
mm
Smallest bore diameter (Dmin)
5
mm
Total length (l5)
25
mm
Setting range radial (f)
2.3
mm
Neck diameter (d)
3.4
mm
Width of groove (w)
1.5
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
eclass-shortcut
21-18-20-11
Full radius (r)
0.75
mm
Maximum depth of groove (tmax)
1
mm
Head size (a)
4.7
mm
Neck length (l2)
10
mm
