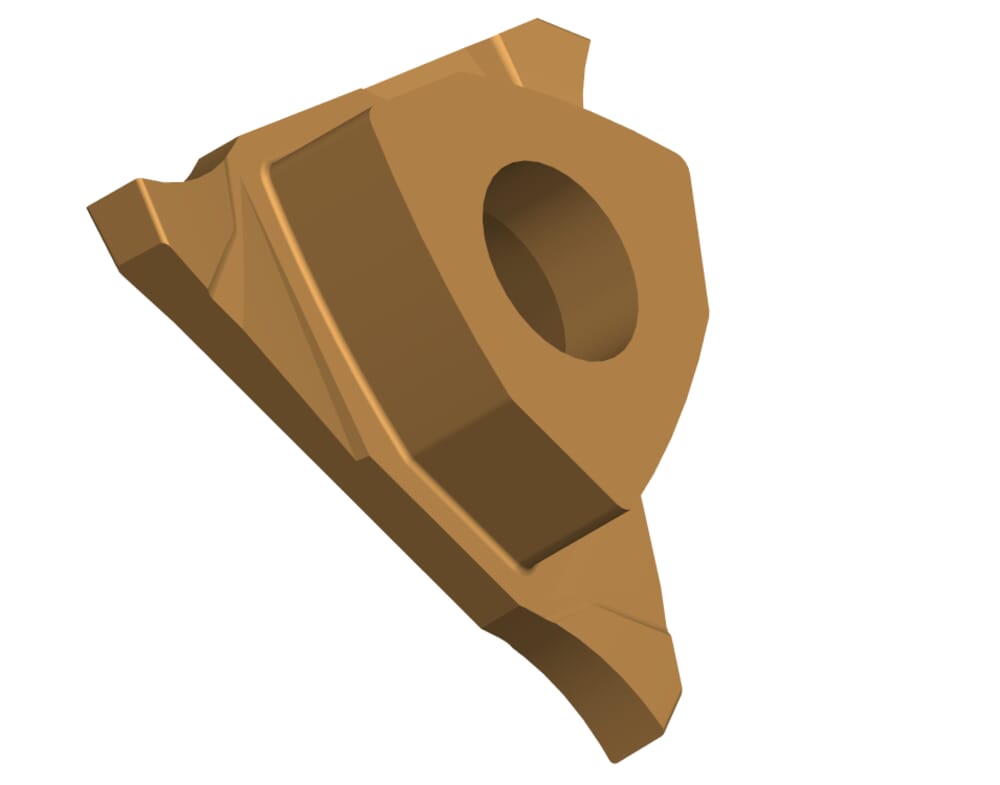

R314.0185.40 TN35
Inserts
Part number R314018540TN35
HORN Inserts R314.0185.40 TN35 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-20-01
ISO_SSC
HORN314027101R$$$$$
DIN_SSC
HORN-314027101R
Katalog_SSC
314027R
Width of groove (w)
1.96
mm
Nominal range (Nw)
1.85
mm
Plate thickness without cutting edge (s)
5.4
mm
Corner radius (r)
0.15
mm
| Downloads | |
|---|---|
| R314_0185_40.DXF | Download |
| R314_0185_40_20171121_184542195.STP | Download |
| Download all files | |
