R315.4054.02.BA CH1G
Insert
Part number R315405402BACH1G

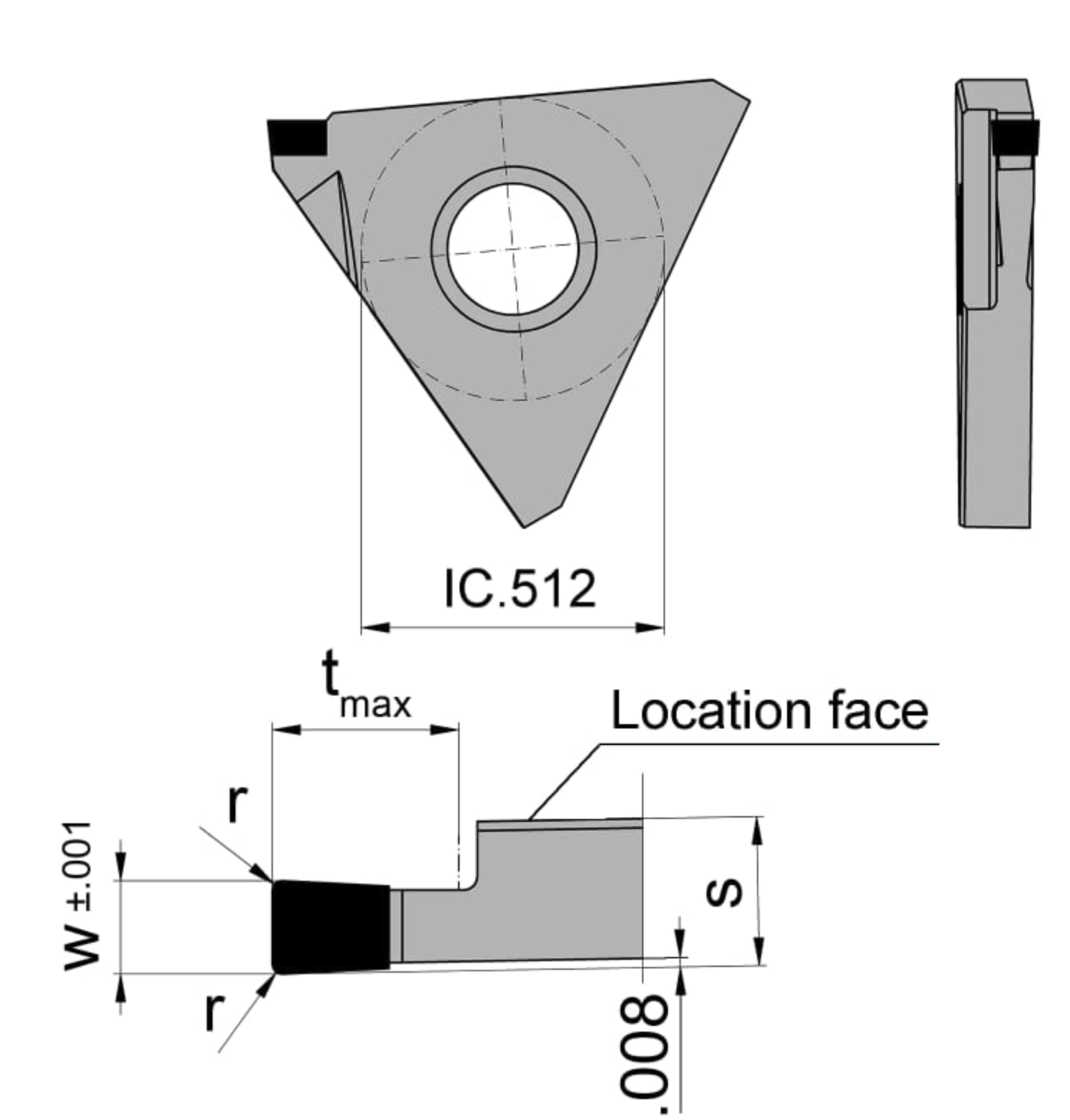

HORN Insert R315.4054.02.BA CH1G for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
5
mm
ISO_SSC
HORN31505$051R$$$$$
DIN_SSC
HORN-31506051R
Katalog_SSC
31505R
Plating seat size (Größe)
3
Width of groove (w)
4
mm
Corner radius (r)
0.2
mm
Cutting insert height, Cutting insert thickness (s)
5.4
mm
| Downloads | |
|---|---|
| R315405402BA.DXF | Download |
| R315405402B_20230117_115411744.STP | Download |
| Download all files | |
