B105.0010.01
Toolholders
Part number B105001001

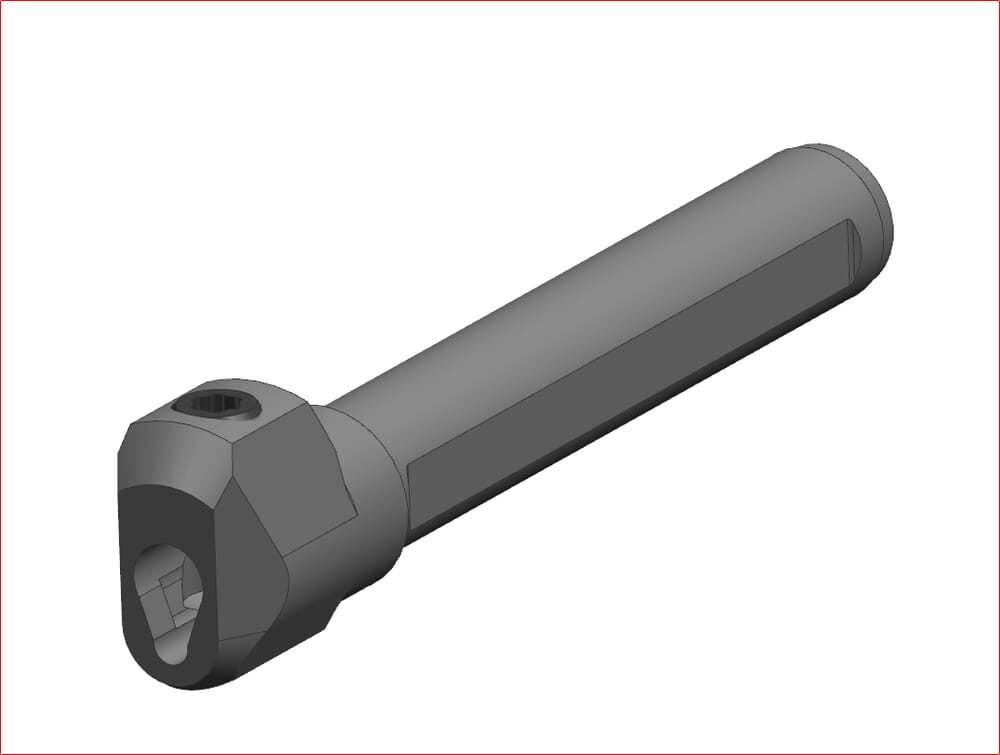

HORN Toolholders B105.0010.01 for Turning
Please note:Technical instructions
Total length (without cutting insert) (l1)
75
mm
Height clamping surface(s) (h)
9
mm
Length of clamping surface(s) (l4)
50
Shank, clamping diameter (d)
10
ISO_CCTWS
HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$
DIN_CCTWS
HORN-10512395N;HORN-10512495N;HORN-10512595N
Katalog_CCTWS
105123;105124;105125
DIN_CCTMS
ZYL01002315
ISO_CCTMS
ZYL23G1000$$$$
eclass-shortcut
21-18-10-05
