B105.0012.01
Toolholders
Part number B105001201

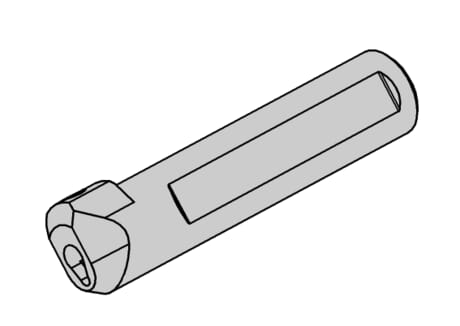

HORN Toolholders B105.0012.01 for Turning
Please note:Technical instructions

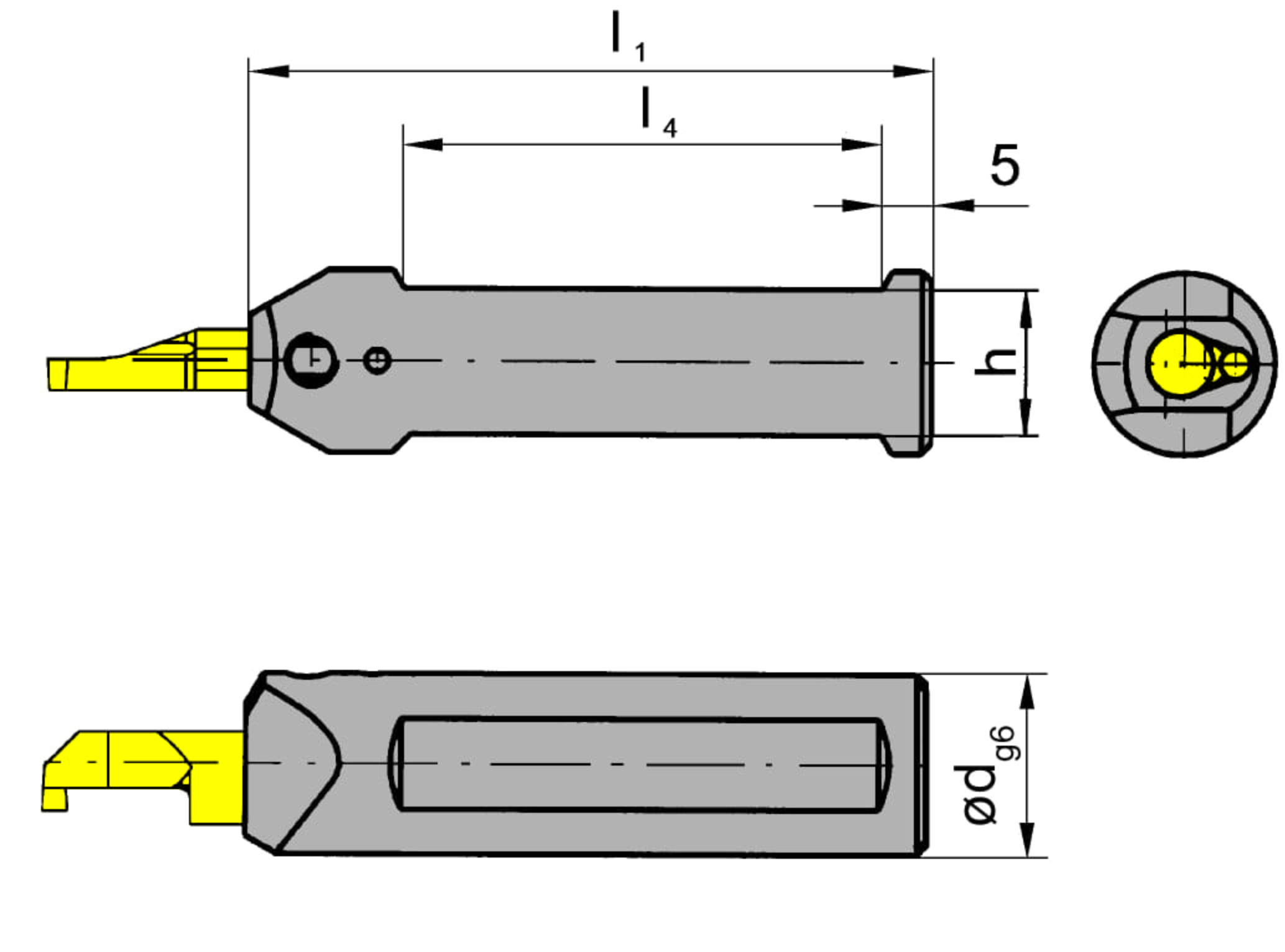

Total length (without cutting insert) (l1)
75
mm
Height clamping surface(s) (h)
11
mm
Length of clamping surface(s) (l4)
50
mm
Shank, clamping diameter (d)
12
ISO_CCTWS
HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$
DIN_CCTWS
HORN-10512395N;HORN-10512495N;HORN-10512595N
Katalog_CCTWS
105123;105124;105125
DIN_CCTMS
ZYL01002315
ISO_CCTMS
ZYL01202315
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| B105001201.DXF | Download |
| B105_0012_01_20171121_231030137.STP | Download |
| Download all files | |
