B105.0022.1.2.01
Toolholder
Part number B10500221201

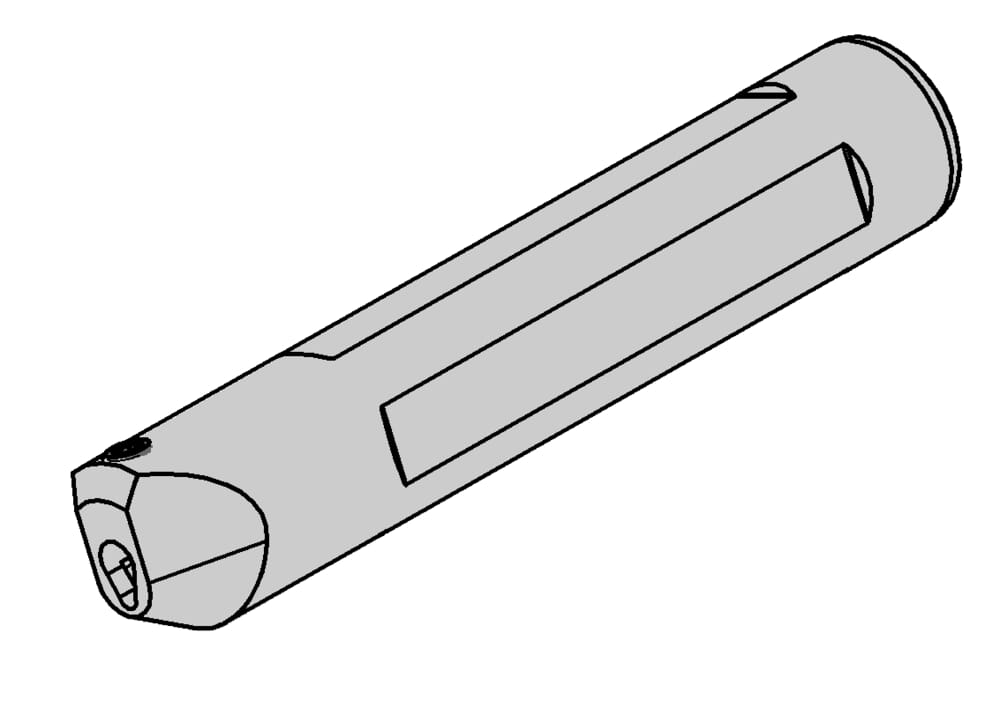

HORN Toolholder B105.0022.1.2.01 for Turning
Please note:Technical instructions

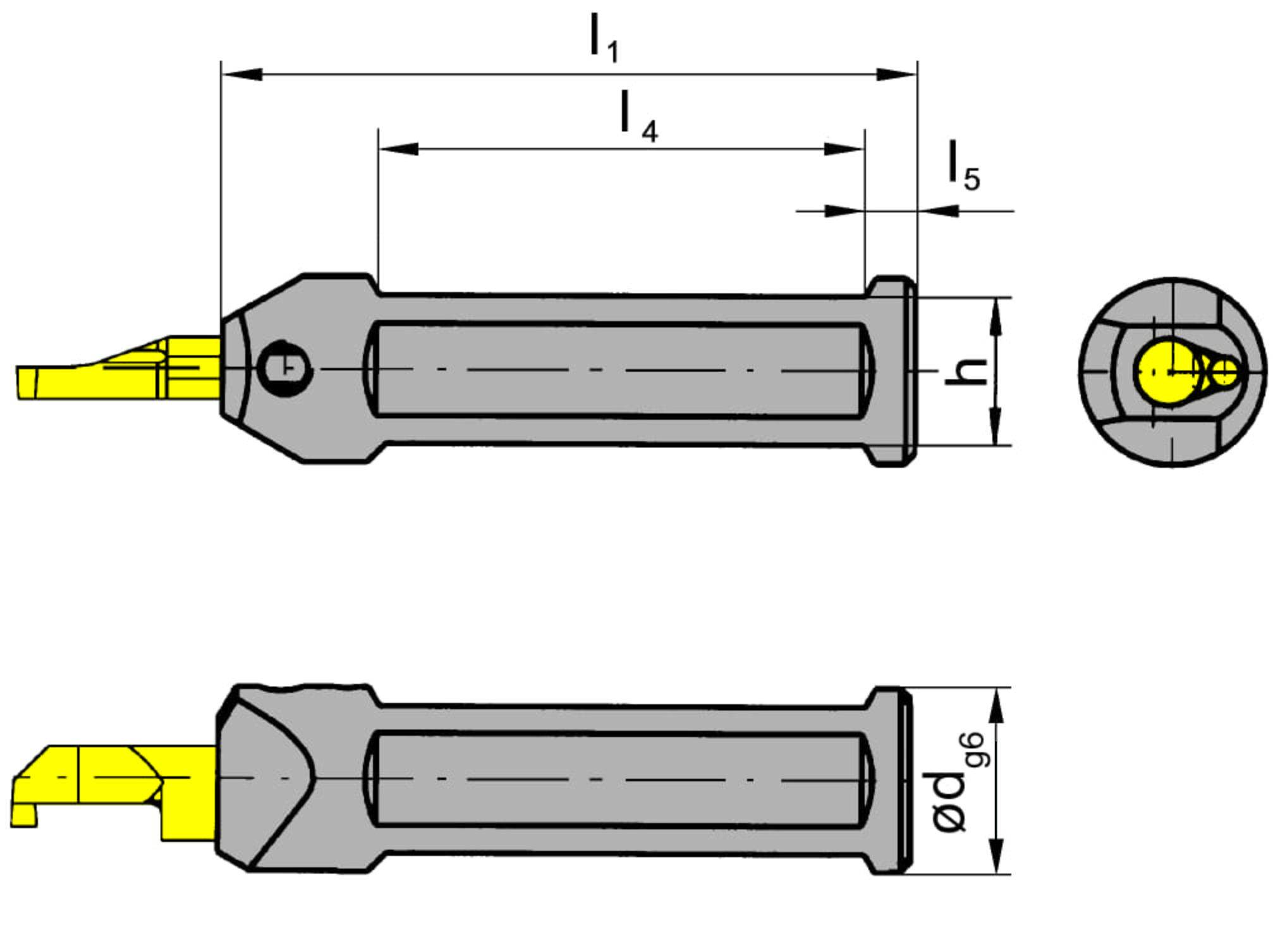

Shank, clamping diameter (d)
22
mm
eclass-shortcut
21-18-10-05
ISO_CCTMS
ZYL24G2200$$$$
DIN_CCTMS
ZYL02202415
Katalog_CCTWS
105123;105124;105125
DIN_CCTWS
HORN-10512395N;HORN-10512495N;HORN-10512595N
ISO_CCTWS
HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$
Length of clamping surface(s) (l4)
72
mm
Height clamping surface(s) (h)
20
mm
Total length (without cutting insert) (l1)
120
mm
Flange thickness (l5)
5
mm
