BKT105.2327.01
Toolholders
Part number BKT105232701
HORN Toolholders BKT105.2327.01 for Turning
Please note:Technical instructions

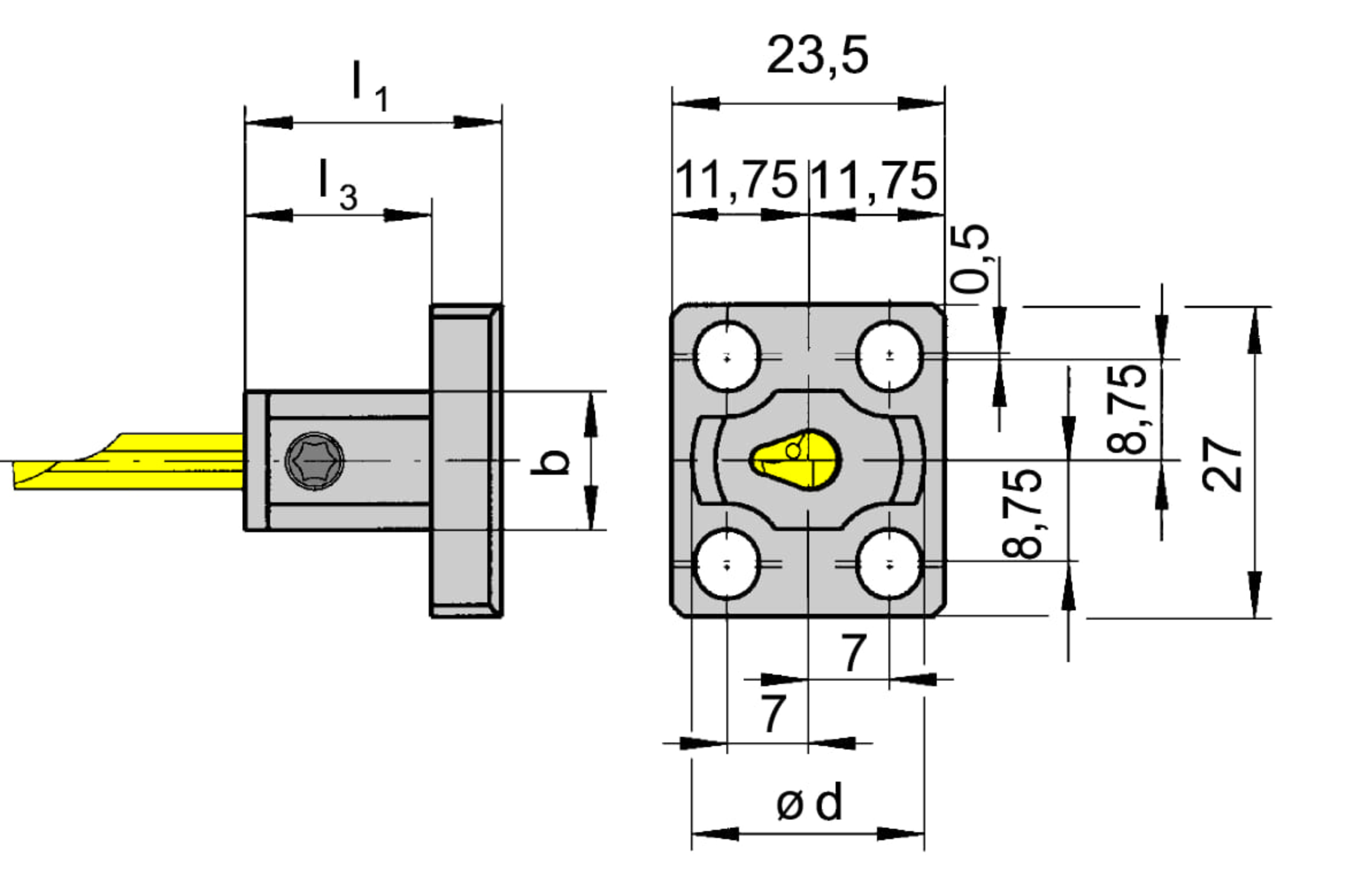

Outcropping, neck, working length (l3)
16
mm
width-met
27
mm
Head size (b)
12
ISO_CCTWS
HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$
DIN_CCTWS
HORN-10512395N;HORN-10512495N;HORN-10512595N
Katalog_CCTWS
105123;105124;105125
Katalog_CCTMS
Kerbverzahnung 90° / T3
Neck diameter (d)
20
mm
Total length (l1)
22
mm
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| BKT105_2327_01.DXF | Download |
| BKT105_2327_01_20171121_223853214.STP | Download |
| Download all files | |
