BKT105.2445.02
Toolholders
Part number BKT105244502

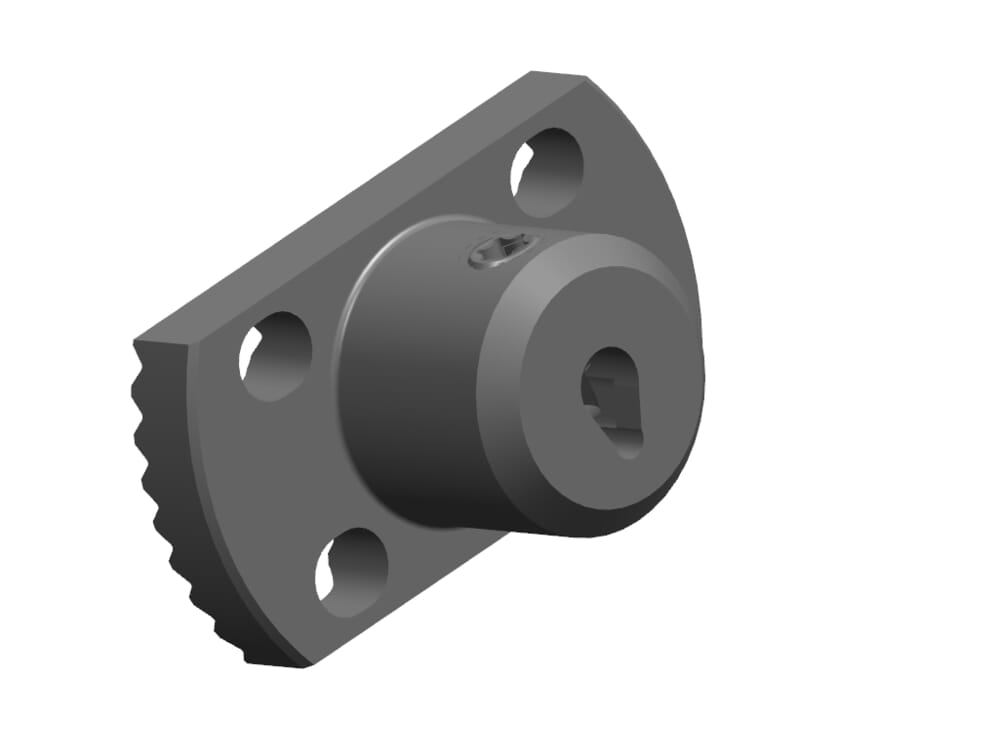

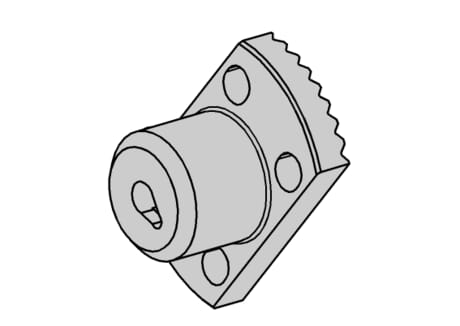

HORN Toolholders BKT105.2445.02 for Turning
Please note:Technical instructions

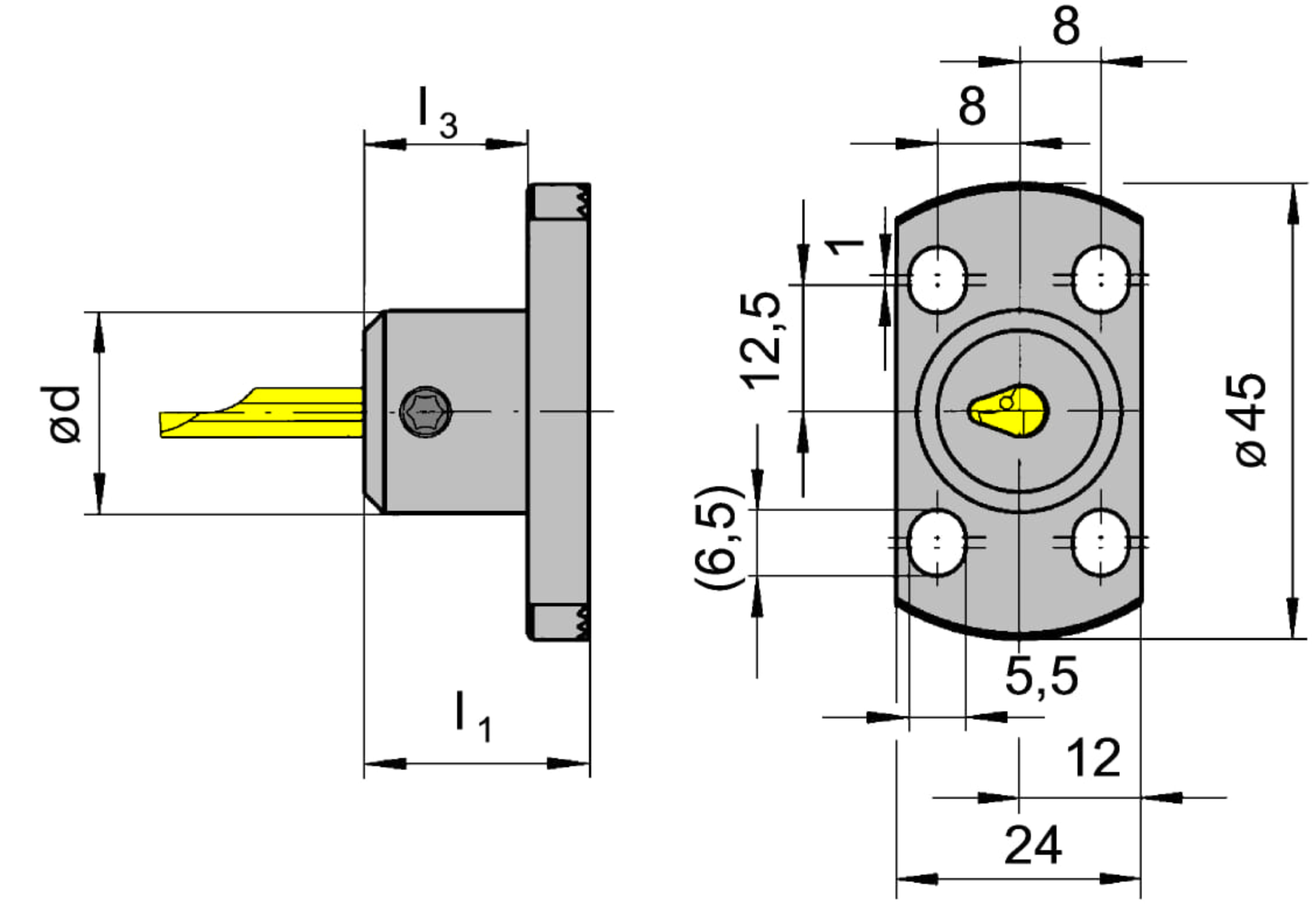

Outcropping, neck, working length (l3)
26
mm
width-met
24
mm
ISO_CCTWS
HORN105225$95N$$$$$
DIN_CCTWS
HORN-10522595N
Katalog_CCTWS
105225
Katalog_CCTMS
Kerbverzahnung 90° / T3
Neck diameter (d)
20
mm
Total length (l1)
32
mm
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| BKT105244502.DXF | Download |
| BKT105_2445_02_20171121_202252653.STP | Download |
| Download all files | |
