C6.CNDN.01.IK
Complete tool
Part number C6CNDN01IK
HORN Complete tool C6.CNDN.01.IK for Turning
Please note:Technical instructions

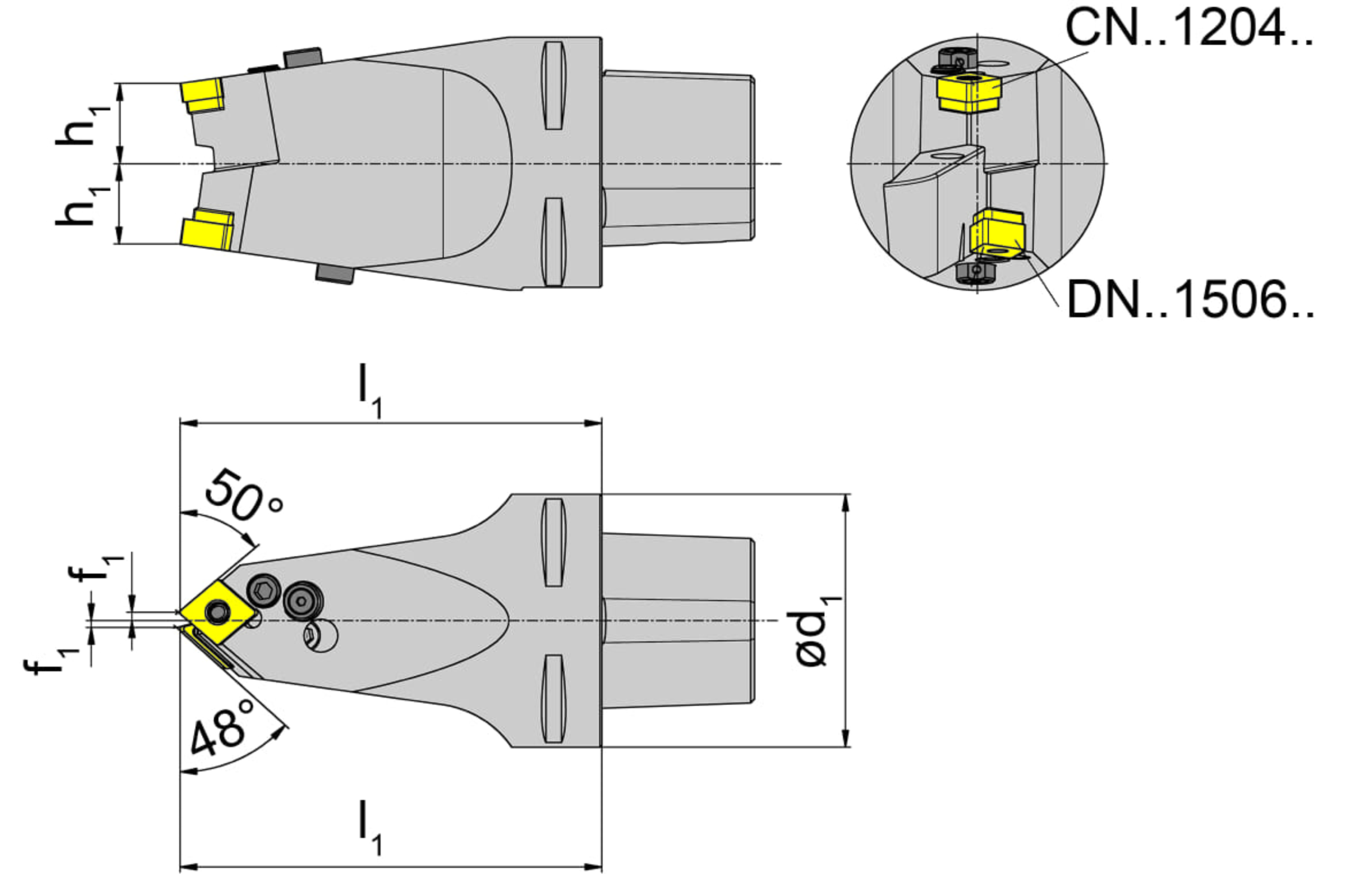

Bore diameter rotate (d1)
63
mm
Adjustment dimension cutting center (f1)
2.1
mm
Peak height from center (h1)
20
ISO_CCTWS
ISO$DN1506082NA$$08
DIN_CCTWS
DN1506082N
Katalog_CCTWS
DN…1506…
DIN_CCTMS
CCS06300195
ISO_CCTMS
CCS01C0630$$$$
Total length insert (l1)
105
mm
| Downloads | |
|---|---|
| C6CNDN01IK.STP | Download |
| Download all files | |
