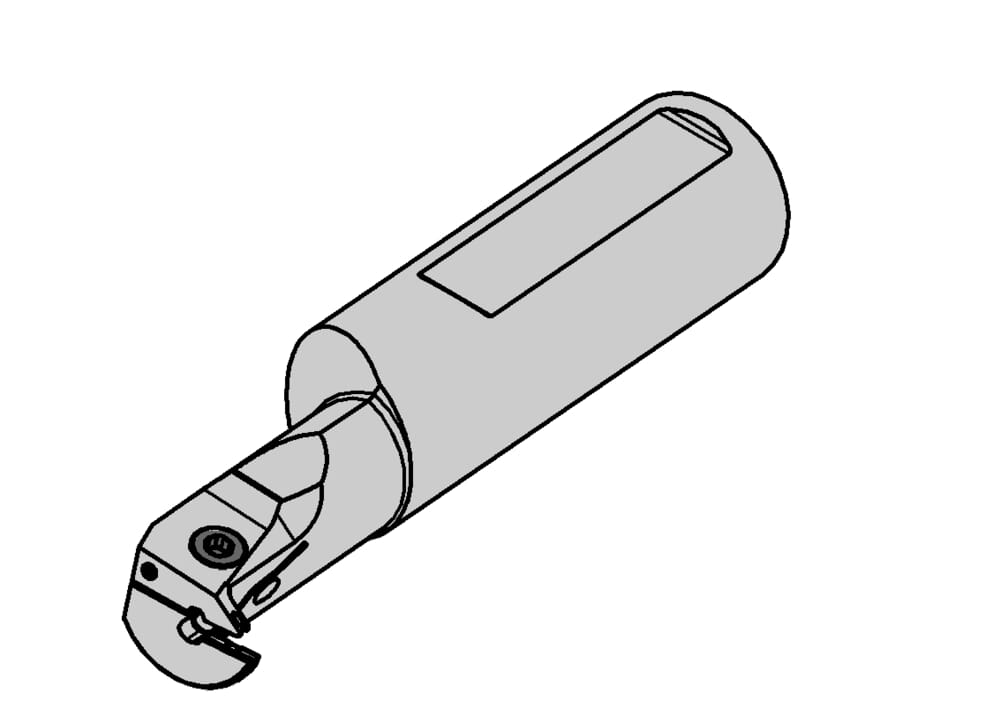

RB216.0025.2.23.IK
Toolholder
Part number RB2160025223IK
HORN Toolholder RB216.0025.2.23.IK for Turning
Please note:Technical instructions
Katalog_CCTWS
21630
eclass-shortcut
21-18-10-05

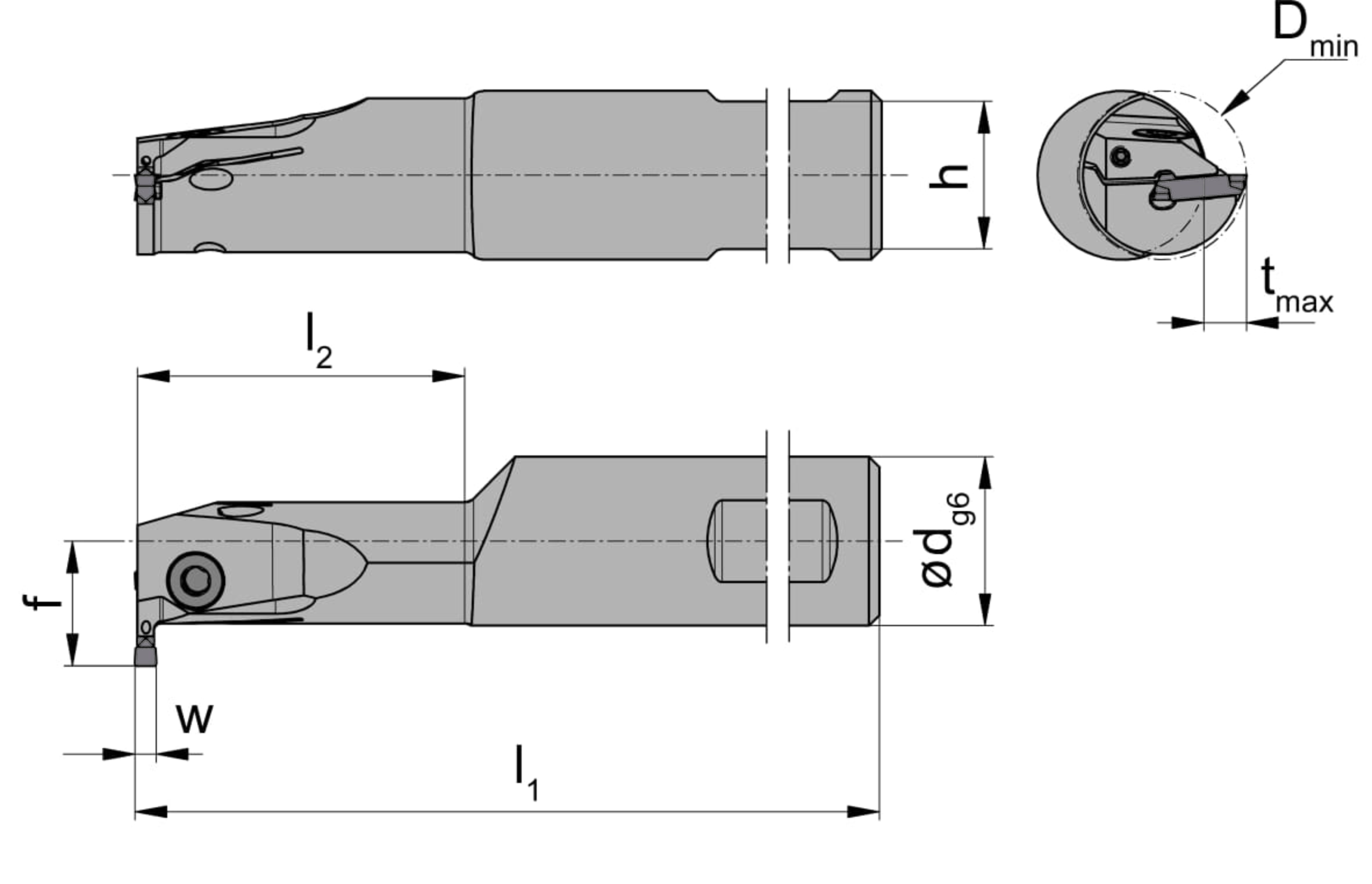

Working length (l2)
50
mm
Plating seat size (Größe)
30
ISO_CCTMS
ZYL23G2500$$$$
DIN_CCTMS
ZYL02502315
Distance of clamping surface (s) (h)
23
mm
DIN_CCTWS
HORN-216300058N
ISO_CCTWS
HORN216300058N$$$$$
Clamping range maximum (Spannbereich)
3.7
mm
Clamping range minimum (Spannbereich)
2.8
mm
Shank, clamping diameter (d)
25
Minimum drilling diameter (Dmin)
25
mm
Maximum depth of groove (tmax)
7.5
mm
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension from center (f)
20.3
mm
| Downloads | |
|---|---|
| RB2160025223IK.DXF | Download |
| RB2160025223IK_20230116_145526500.STP | Download |
| Download all files | |
