R114.0110.00 TN35

Inserts

Part number R114011000TN35

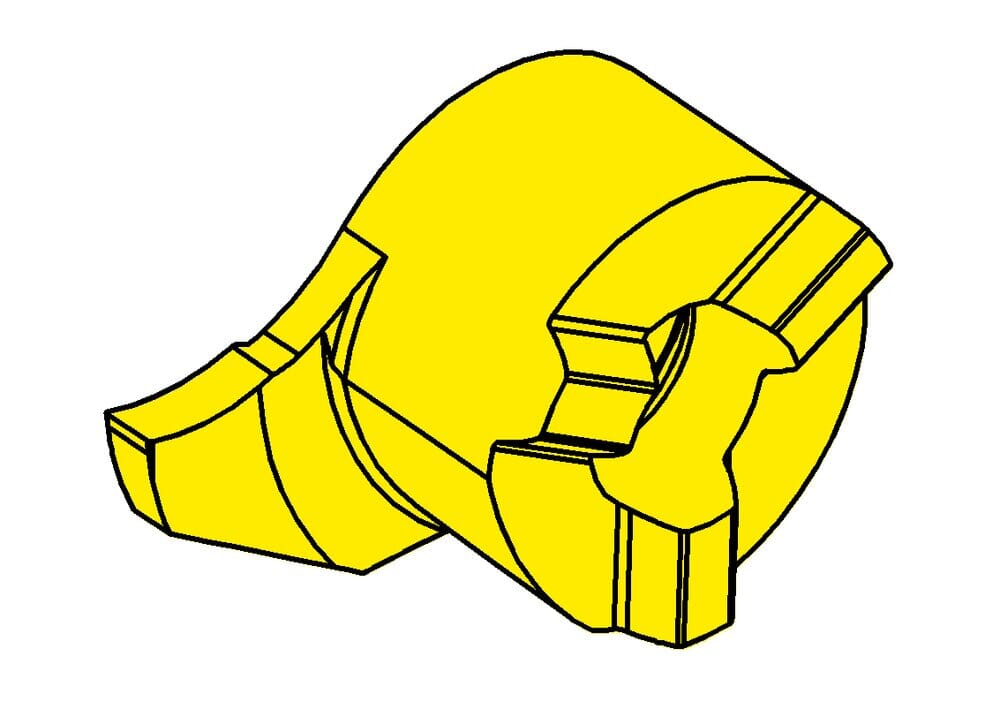

HORN Inserts R114.0110.00 TN35 for Turning

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.3 mm

Tooth diameter, head diameter (d)

9 mm

Setting range radial (f)

9 mm

Nominal range (Nw)

1.1 mm

Width of groove (w)

1.19 mm

Katalog_SSC

114090R

ISO_SSC

HORN114090$84R$$$$$

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

4 mm

Head size (a)

13.5 mm
