DSKMA.020.030 MG3K
DS endmill
Part number DSKMA020030MG3K

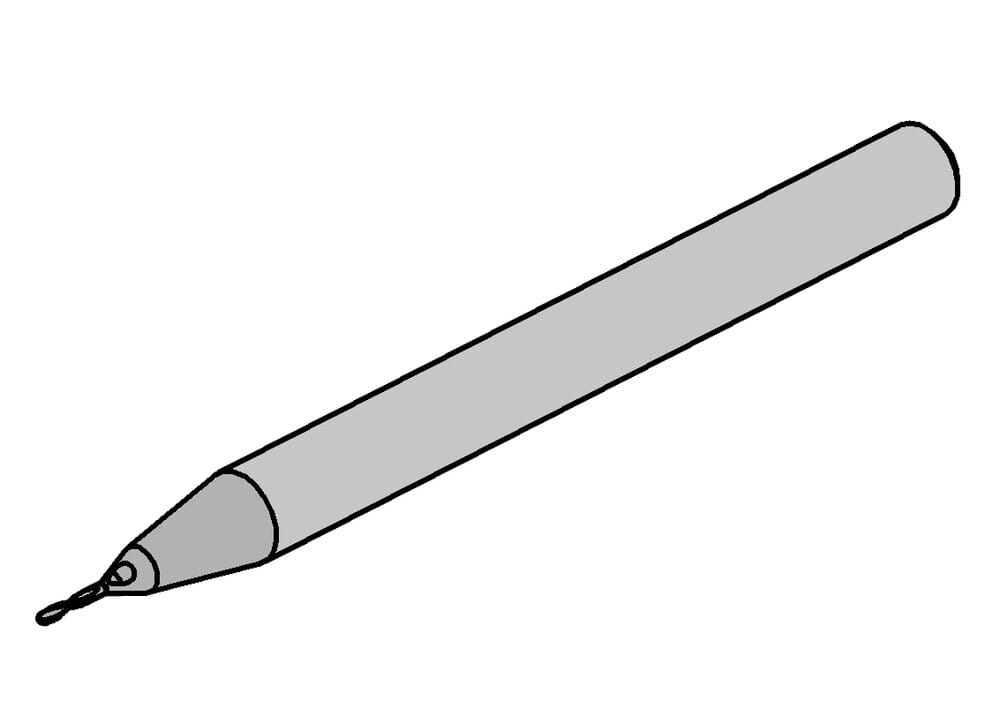

HORN DS endmill DSKMA.020.030 MG3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Shank tapering angle γ1 (γ1)
20 °
Total length (l1)
50 mm
Effective cutting length (l2)
0.5 mm
Radius, full-radius (r)
0.1 mm
Neck diameter (d3)
0.18 mm
ISO_CCTMS
ZYL01F4000h$06
DIN_CCTMS
ZYL00400105
Number of teeth (Z)
2 St.
Cutting diameter (d1)
0.2 mm
Neck length (l3)
0.6 mm
Shank diameter (d2)
4 mm
| Downloads | |
|---|---|
| DSKMA_020_030_MG3K-ISO.XML | Download |
| DSKMA_020_030_MG3K-DIN.XML | Download |
| Download all files | |
