001.C025.12.30IK
Toolholder
Part number 001C0251230IK
HORN Toolholder 001.C025.12.30IK for Turning
Please note:Technical instructions

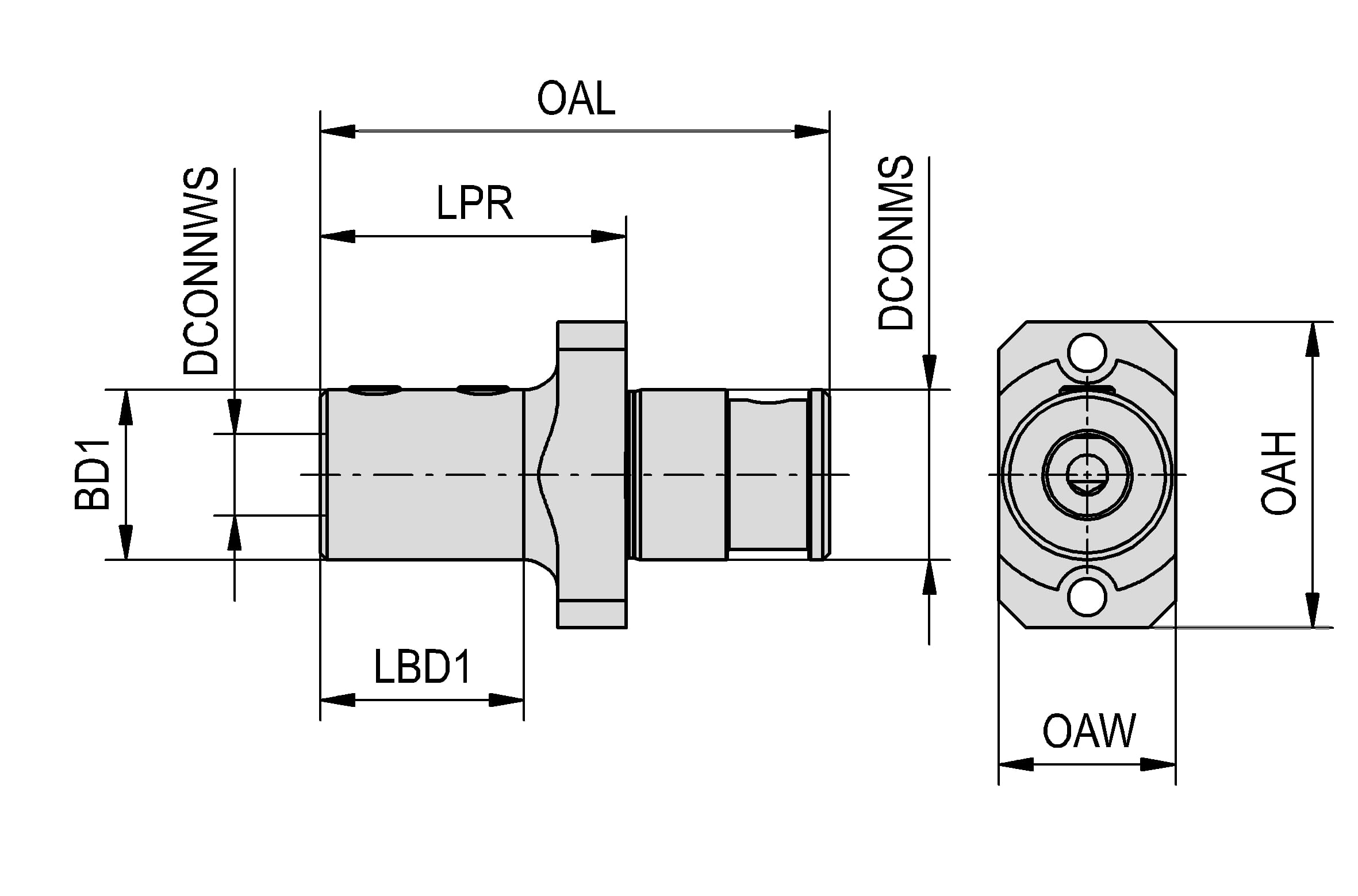

Length body diameter 1 (LBD1)
30
Body diameter 1 (BD1)
25 mm
Overall width (OAW)
26
Overall length (OAL)
75 mm
Overall heigth (OAH)
45
Protruding length (LPR)
45.05 mm
connection diameter machine side (DCONMS)
25
| Downloads | |
|---|---|
| 001_C025_12_30IK-DXF.DXF | Download |
| 001_C025_12_30IK-ISO.XML | Download |
| 001_C025_12_30IK-DIN.XML | Download |
| Download all files | |
