217.0080.00 K10
Inserts
Part number 217008000K10
HORN Inserts 217.0080.00 K10 for Turning
Please note:Technical instructions

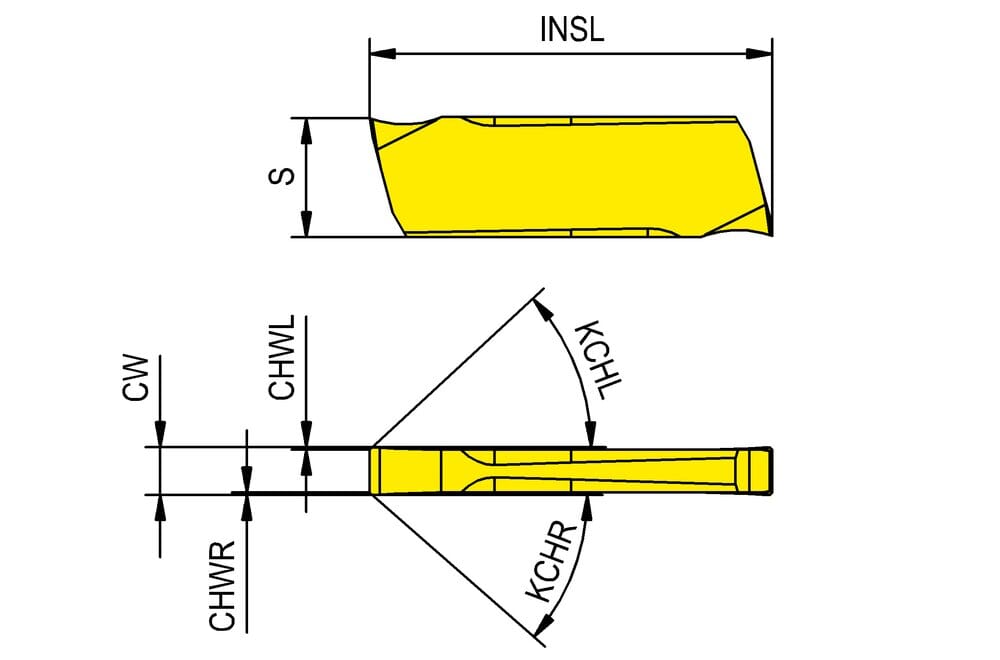

Wide retaining ring (RTRG)
0.8 mm
Cutting edge height (S)
4.9 mm
Insert length (INSL)
16.75 mm
Cutting width (CW)
0.87 mm
| Downloads | |
|---|---|
| 217_0080_00_K10-DXF.DXF | Download |
| 217_0080_00_K10-STP.STP | Download |
| 217_0080_00_K10-ISO.XML | Download |
| 217_0080_00_K10-DIN.XML | Download |
| Download all files | |
