217.0185.00 H20
Inserts
Part number 217018500H20

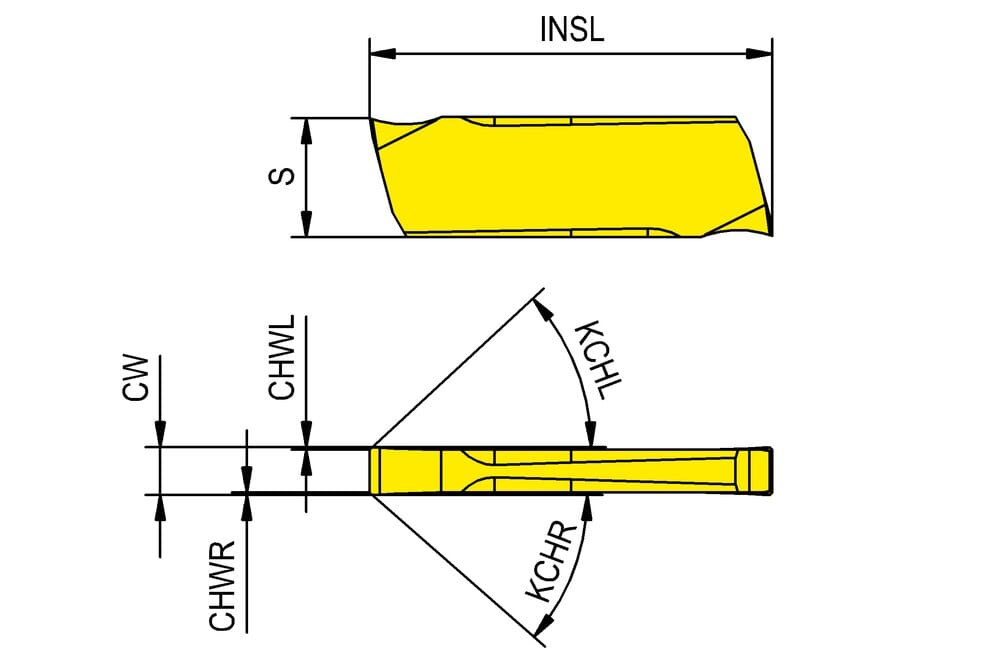

HORN Inserts 217.0185.00 H20 for Turning
Please note:Technical instructions
Wide retaining ring (RTRG)
1.85 mm
Corner chamfer angle right hand (KCHR)
45 °
Corner chamfer angle left hand (KCHL)
45 °
Corner chamfer width right hand (CHWR)
0.05 mm
Corner chamfer width left hand (CHWL)
0.05 mm
Cutting edge height (S)
4.9 mm
Insert length (INSL)
16.75 mm
Cutting width (CW)
1.99 mm
