229.0400.31 P20
Inserts
Part number 229040031P20

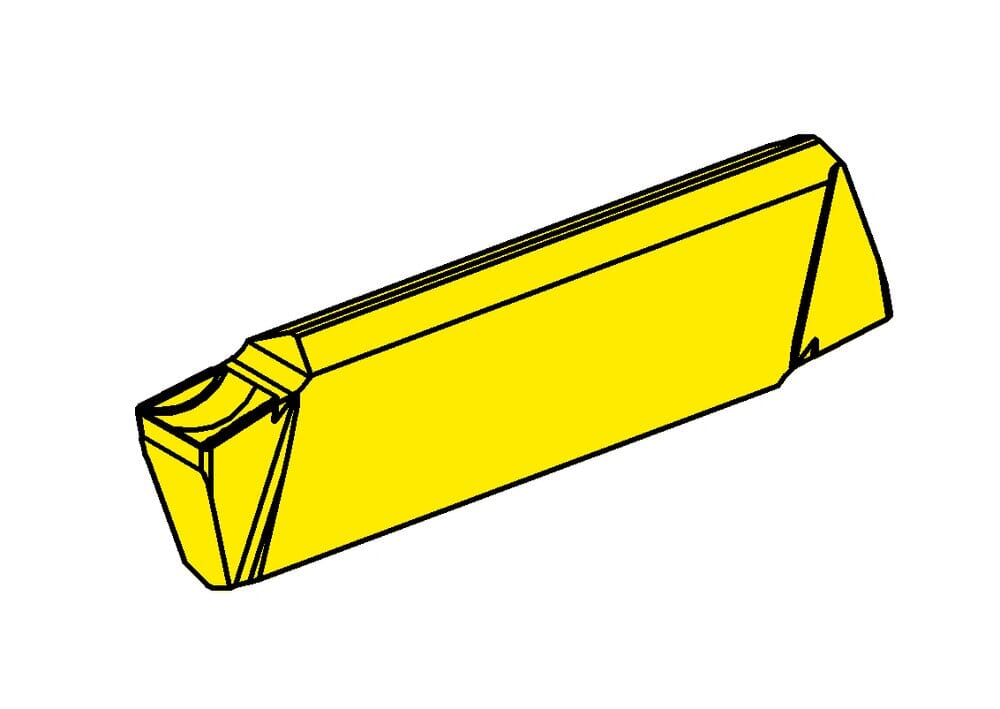

HORN Inserts 229.0400.31 P20 for Turning
Please note:Technical instructions
Schneidkantenhöhe (S)
6.2 mm
Eckenradius links (REL)
0.2 mm
Eckenradius rechts (RER)
0.2 mm
Schneidplattenlänge (INSL)
30.4 mm
Schnittbreite, Nennmaß (CW)
4 mm
| Downloads | |
|---|---|
| 229_0400_31_P20-DXF.DXF | Download |
| 229_0400_31_P20-STP.STP | Download |
| 229_0400_31_P20-ISO.XML | Download |
| 229_0400_31_P20-DIN.XML | Download |
| Download all files | |
