229.0400.34 TC92
Inserts
Part number 229040034TC92
HORN Inserts 229.0400.34 TC92 for Turning
Please note:Technical instructions

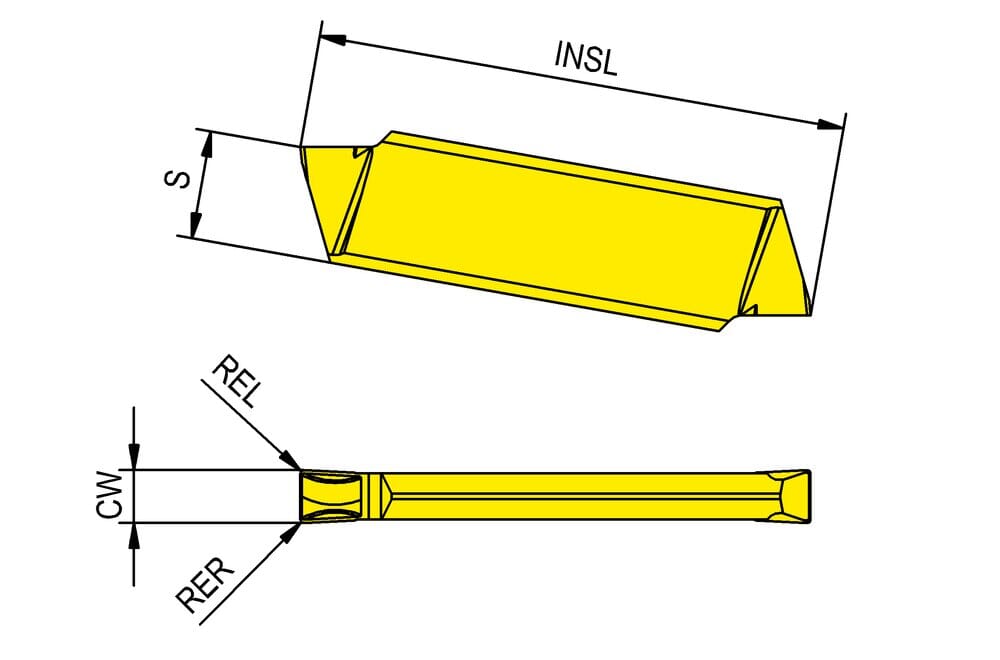

Cutting edge height (S)
6.2 mm
corner radius left hand (REL)
0.4 mm
corner radius right hand (RER)
0.4 mm
Insert length (INSL)
30.4 mm
Cutting width (CW)
4.03 mm
| Downloads | |
|---|---|
| 229_0400_34_TC92-ISO.XML | Download |
| 229_0400_34_TC92-DIN.XML | Download |
| 229_0400_34_TC92-DXF.DXF | Download |
| 229_0400_34_TC92-STP.STP | Download |
| Download all files | |
