229.0500.31 IG66
insert
Part number 229050031IG66
HORN insert 229.0500.31 IG66 for Turning
Please note:Technical instructions

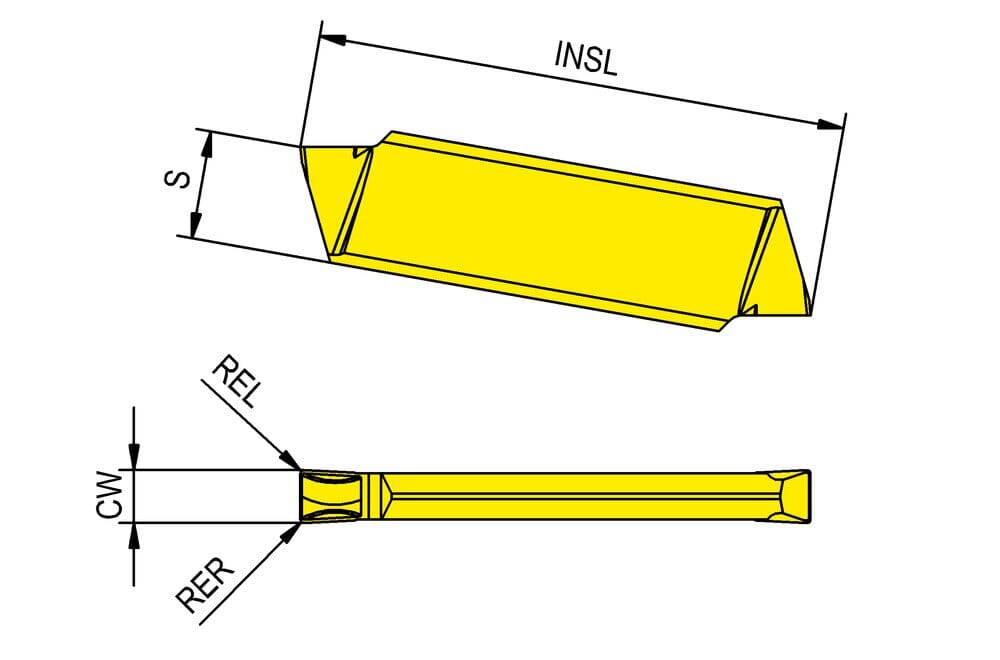

Cutting edge height (S)
6.2 mm
corner radius left hand (REL)
0.2 mm
corner radius right hand (RER)
0.2 mm
Insert length (INSL)
30.4 mm
Cutting width (CW)
5 mm
| Downloads | |
|---|---|
| 229_0500_31_IG66-DXF.DXF | Download |
| 229_0500_31_IG66-STP.STP | Download |
| 229_0500_31_IG66-ISO.XML | Download |
| 229_0500_31_IG66-DIN.XML | Download |
| Download all files | |
