229.0500.31 TI22
insert
Part number 229050031TI22

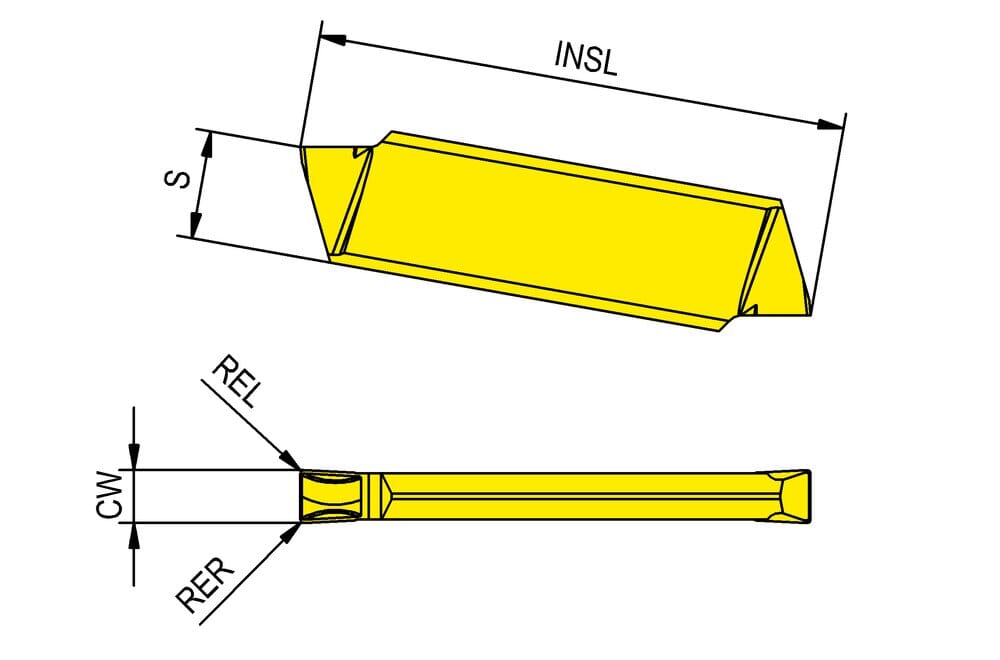

HORN insert 229.0500.31 TI22 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISOSSC
HORN229040108N$$$$$
Katalog_SSC
229040
Plating seat size (Größe)
4
Width of groove (w)
5 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| 229_0500_31_TI22-DXF.DXF | Download |
| 229_0500_31_TI22-STP.STP | Download |
| 229_0500_31_TI22-ISO.XML | Download |
| 229_0500_31_TI22-DIN.XML | Download |
| Download all files | |
