229.0800.31 AS62
insert
Part number 229080031AS62
HORN insert 229.0800.31 AS62 for Turning
Please note:Technical instructions

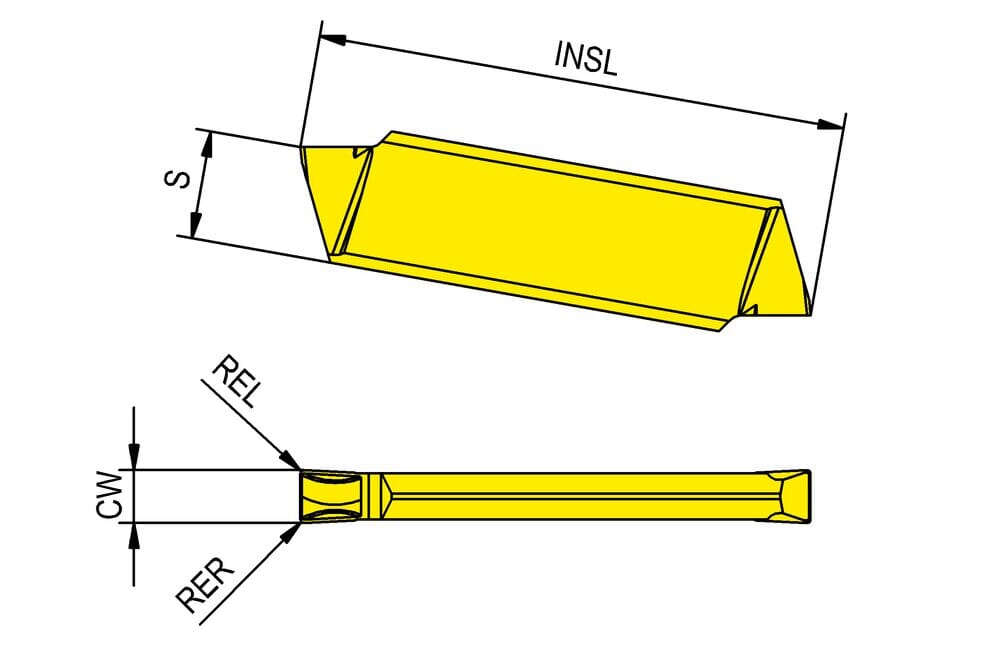

Cutting edge height (S)
6.5 mm
corner radius left hand (REL)
0.4 mm
corner radius right hand (RER)
0.4 mm
Insert length (INSL)
30.6 mm
Cutting width (CW)
8 mm
| Downloads | |
|---|---|
| 229_0800_31_AS62-DXF.DXF | Download |
| 229_0800_31_AS62-STP.STP | Download |
| 229_0800_31_AS62-ISO.XML | Download |
| 229_0800_31_AS62-DIN.XML | Download |
| Download all files | |
