229.1000.31 IG66
insert
Part number 229100031IG66

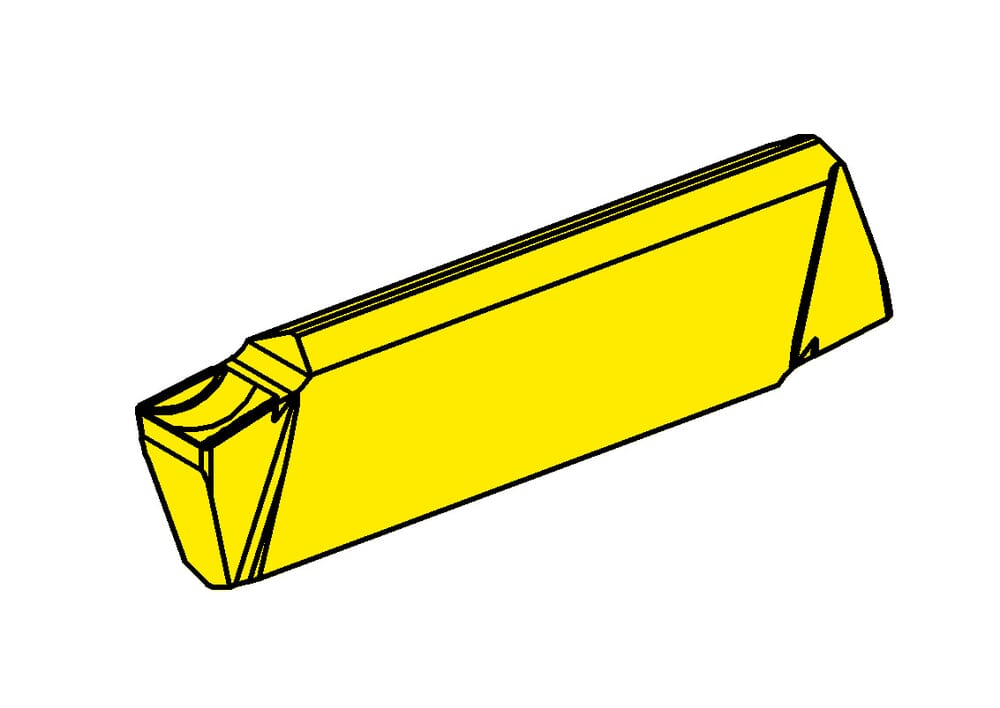

HORN insert 229.1000.31 IG66 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
Plating seat size (Größe)
9
Width of groove (w)
10 mm
Corner radius (r)
0.4 mm
| Downloads | |
|---|---|
| 229_1000_31_IG66-DIN.XML | Download |
| 229_1000_31_IG66-DXF.DXF | Download |
| 229_1000_31_IG66-STP.STP | Download |
| 229_1000_31_IG66-ISO.XML | Download |
| Download all files | |
