306.0150.10.00 AS45
Insert
Part number 30601501000AS45

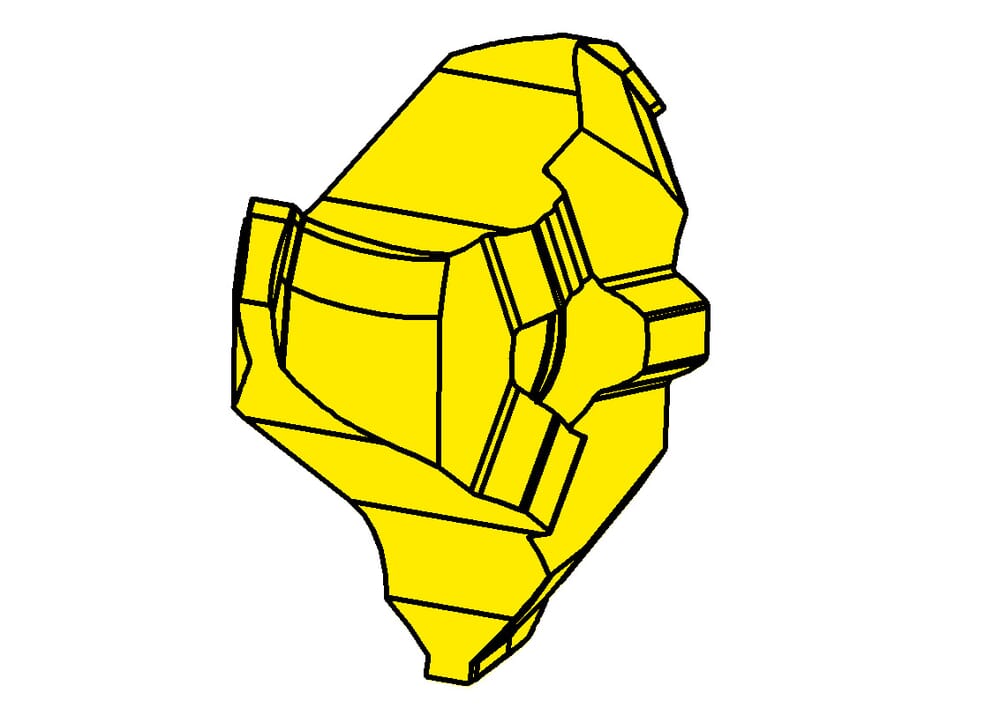

HORN Insert 306.0150.10.00 AS45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
9.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN306060$84R$$$$$
Katalog_SSC
306060R
plating-seat-size
0
Width of groove (w)
1.5
mm
Maximum milling depth/ depth of groove (tmax)
1.5
mm
Cutting insert thickness, setting length complete (s)
3.2
mm
| Downloads | |
|---|---|
| 306_0150_10_00_AS45-ISO.XML | Download |
| 306_0150_10_00_AS45-DXF.DXF | Download |
| 306_0150_10_00_AS45-STP.STP | Download |
| 306_0150_10_00_AS45-DIN.XML | Download |
| Download all files | |
