306.0200.10.00 TA45
Insert
Part number 30602001000TA45
HORN Insert 306.0200.10.00 TA45 for Milling
Please note:Technical instructions

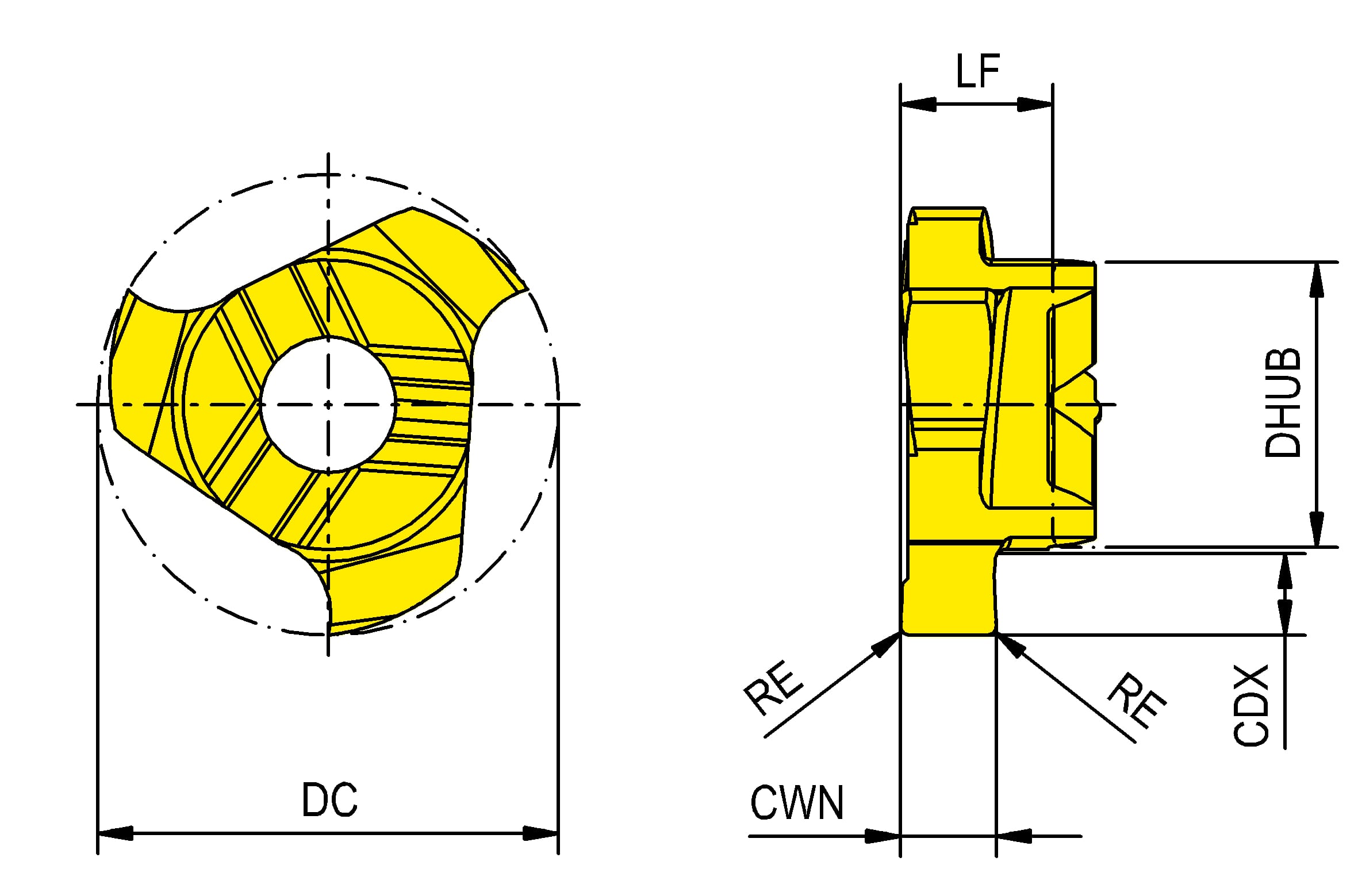

Cutting width minimum (CWN)
2.01 mm
Corner radius (RE)
0.2 mm
Functional length (LF)
3.2 mm
hub diameter (DHUB)
6 mm
Cutting diameter (DC)
9.7 mm
Cutting depth maximum (CDX)
1.5 mm
