306.0250.00 TN35
Inserts
Part number 306025000TN35

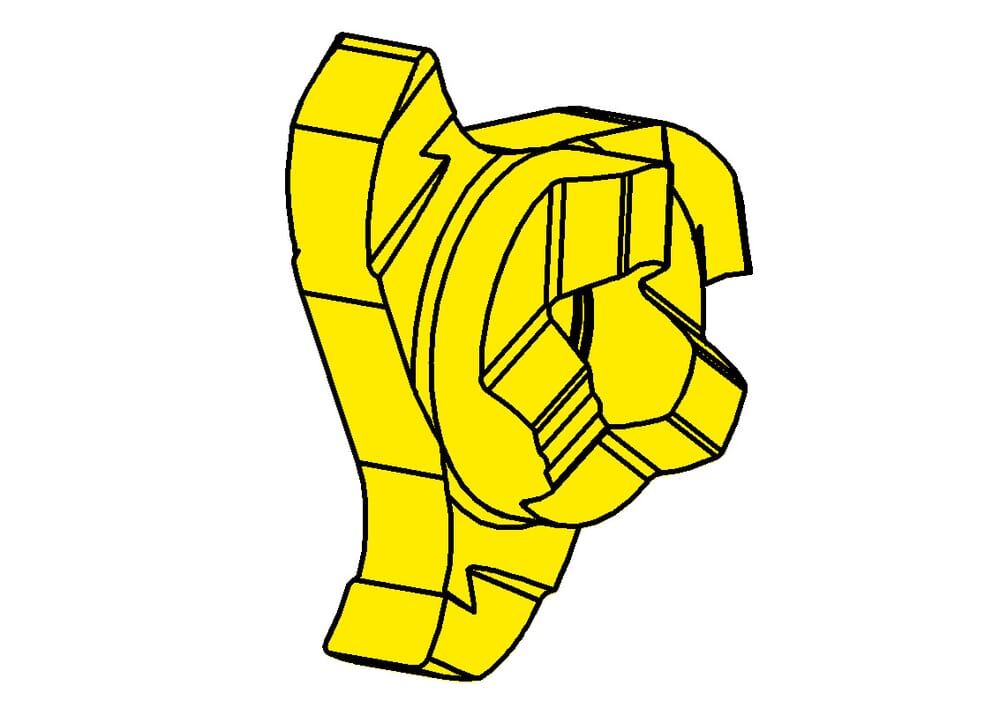

HORN Inserts 306.0250.00 TN35 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
11.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN306060$84R$$$$$
DIN_SSC
HORN-30606084R
Katalog_SSC
306060R
plating-seat-size
0
Width of groove (w)
2.5
mm
Maximum milling depth/ depth of groove (tmax)
2.5
mm
Cutting insert thickness, setting length complete (s)
3.2
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| 306_0250_00_TN35-DXF.DXF | Download |
| 306_0250_00_TN35-STP.STP | Download |
| 306_0250_00_TN35-DIN.XML | Download |
| Download all files | |
