306.2530.01 TI25
Inserts
Part number 306253001TI25
HORN Inserts 306.2530.01 TI25 for Gewinden
Please note:Technical instructions

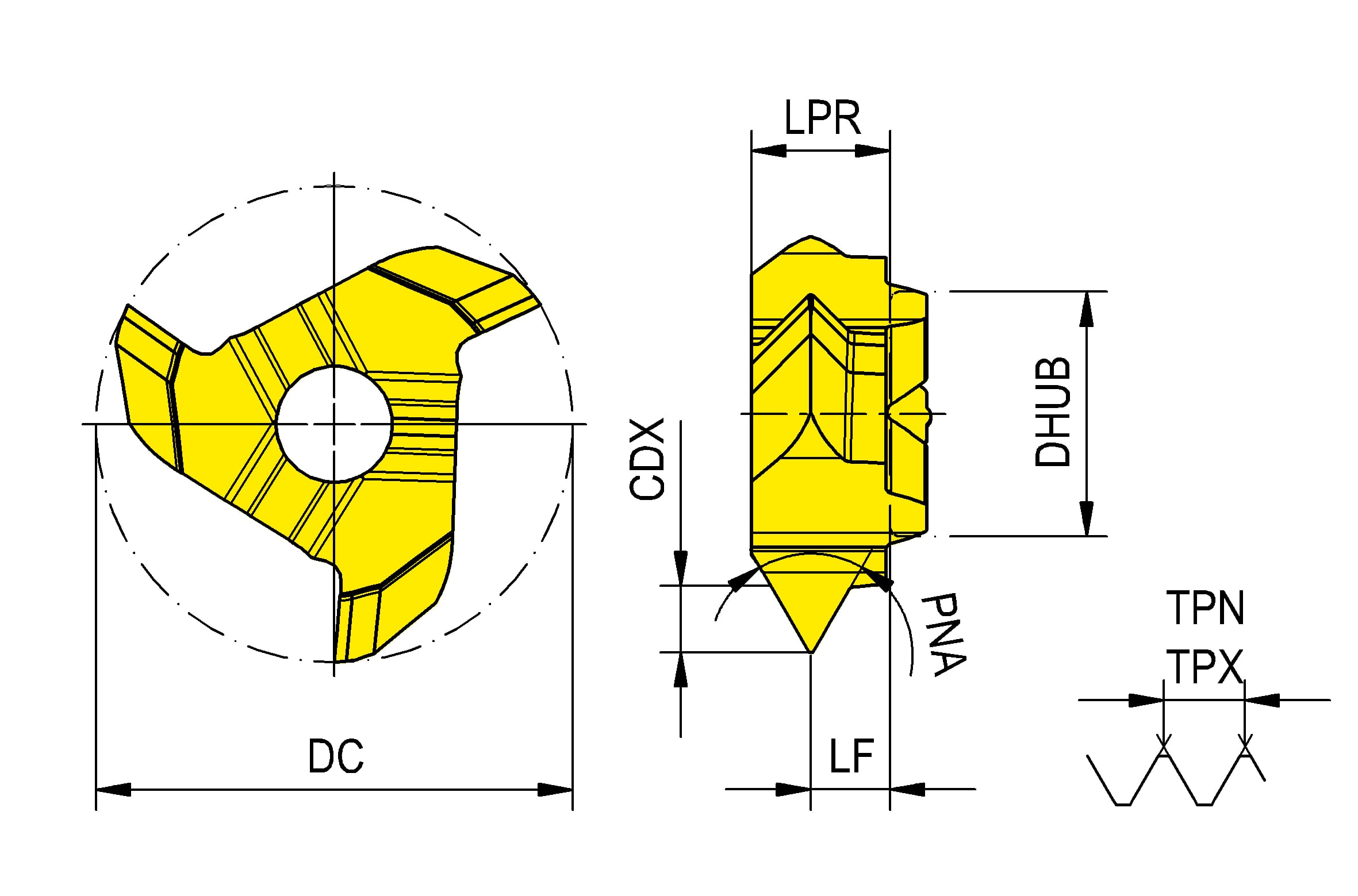

Profile included angle (PNA)
60 °
Thred pitch maximum (TPX)
3 mm
Thread pitch minimum (TPN)
2.5 mm
Protruding length (LPR)
3.4 mm
Functional length (LF)
1.7 mm
hub diameter (DHUB)
6 mm
Cutting diameter (DC)
11.7 mm
Cutting depth maximum (CDX)
1.8 mm
| Downloads | |
|---|---|
| 306_2530_01_TI25-ISO.XML | Download |
| 306_2530_01_TI25-DXF.DXF | Download |
| 306_2530_01_TI25-STP.STP | Download |
| 306_2530_01_TI25-DIN.XML | Download |
| Download all files | |
