306.0515.01 TA45
Insert
Part number 306051501TA45
HORN Insert 306.0515.01 TA45 for Gewinden
Please note:Technical instructions

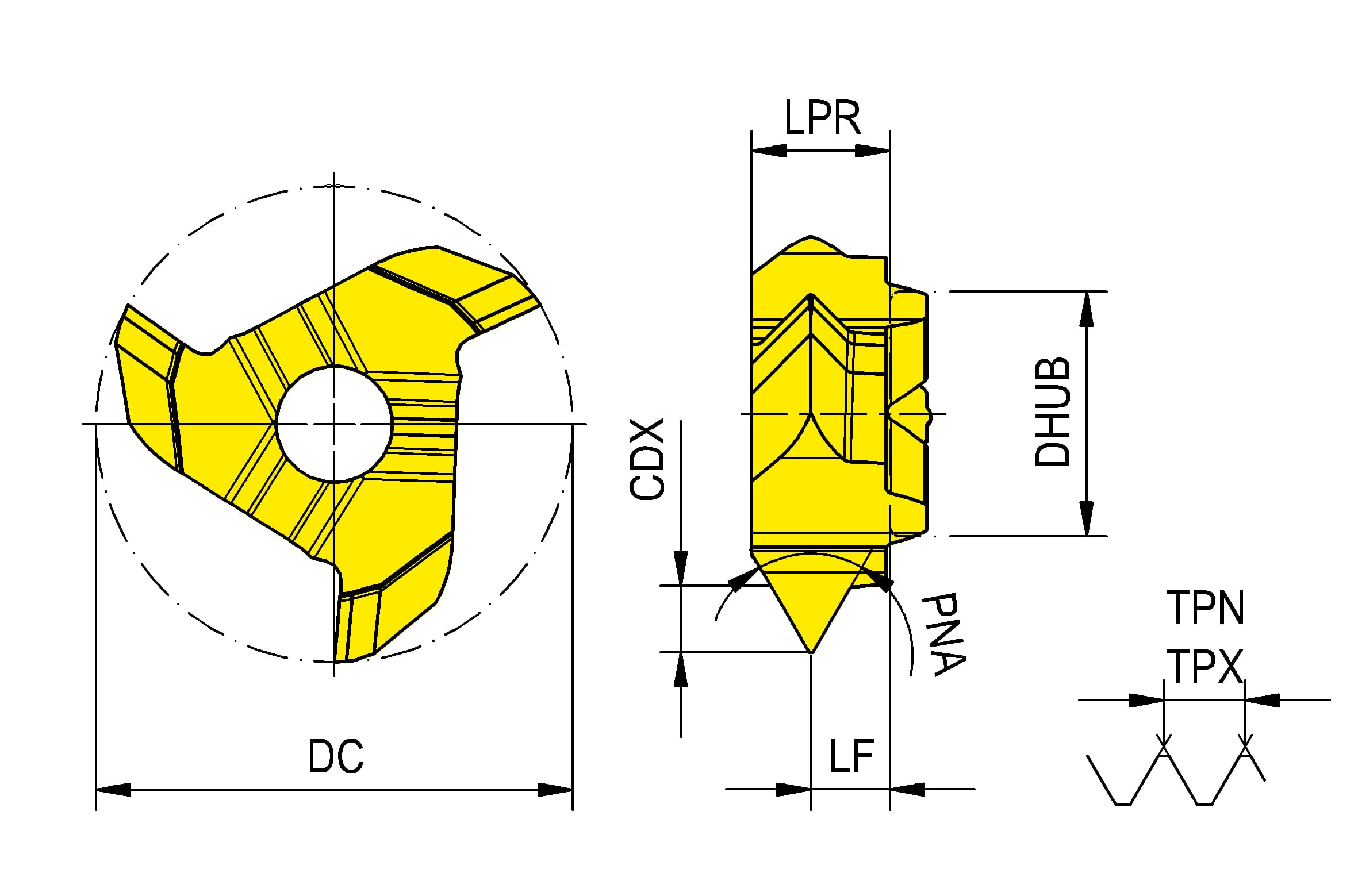

Profile included angle (PNA)
60 °
Thred pitch maximum (TPX)
1.5 mm
Thread pitch minimum (TPN)
0.5 mm
Protruding length (LPR)
3.4 mm
Functional length (LF)
2.3 mm
hub diameter (DHUB)
6 mm
Cutting diameter (DC)
10 mm
Cutting depth maximum (CDX)
1 mm
