308.0020.40 AS45
Insert
Part number 308002040AS45

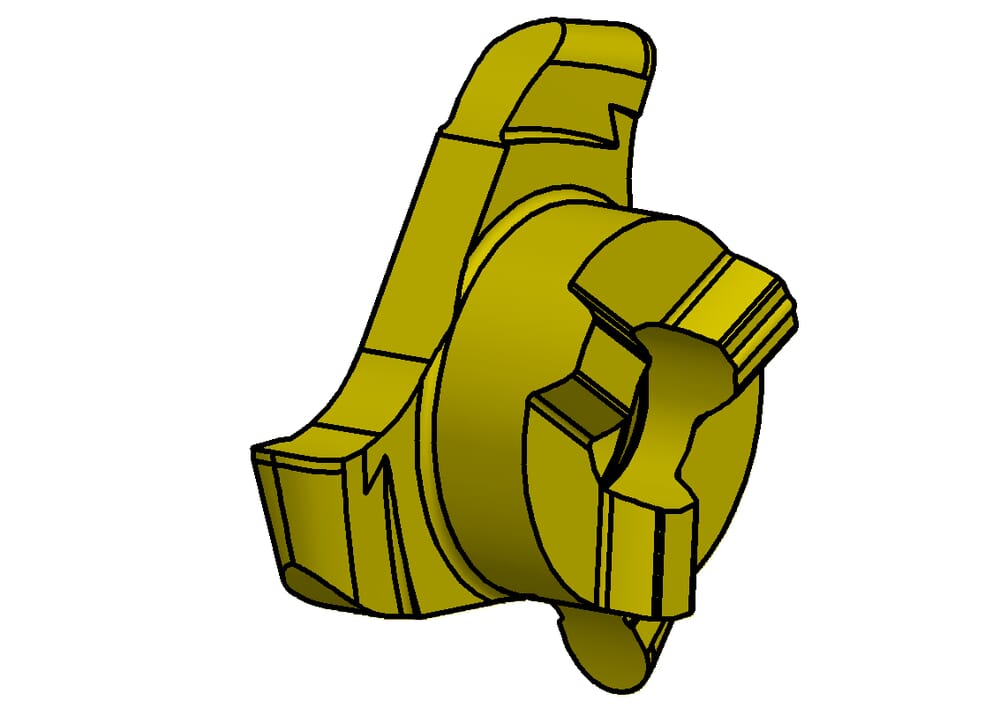

HORN Insert 308.0020.40 AS45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
15.7
mm
Number of teeth (Z)
3
St.
eclass-shortcut
21-18-20-11
ISO_SSC
HORN308080$84R$$$$$
DIN_SSC
HORN30808084R
Katalog_SSC
308080R
Width of groove (w)
4
mm
Maximum milling depth/ depth of groove (tmax)
3.5
mm
Cutting insert thickness, setting length complete (s)
4.5
mm
Radius, full-radius (r)
2
mm
Downloads | |
---|---|
308002040_20210630_110552628.STP | Download |
308002040.DXF | Download |
Download all files |
