311.0110.00 TN35
Inserts
Part number 311011000TN35
HORN Inserts 311.0110.00 TN35 for Milling
Please note:Technical instructions

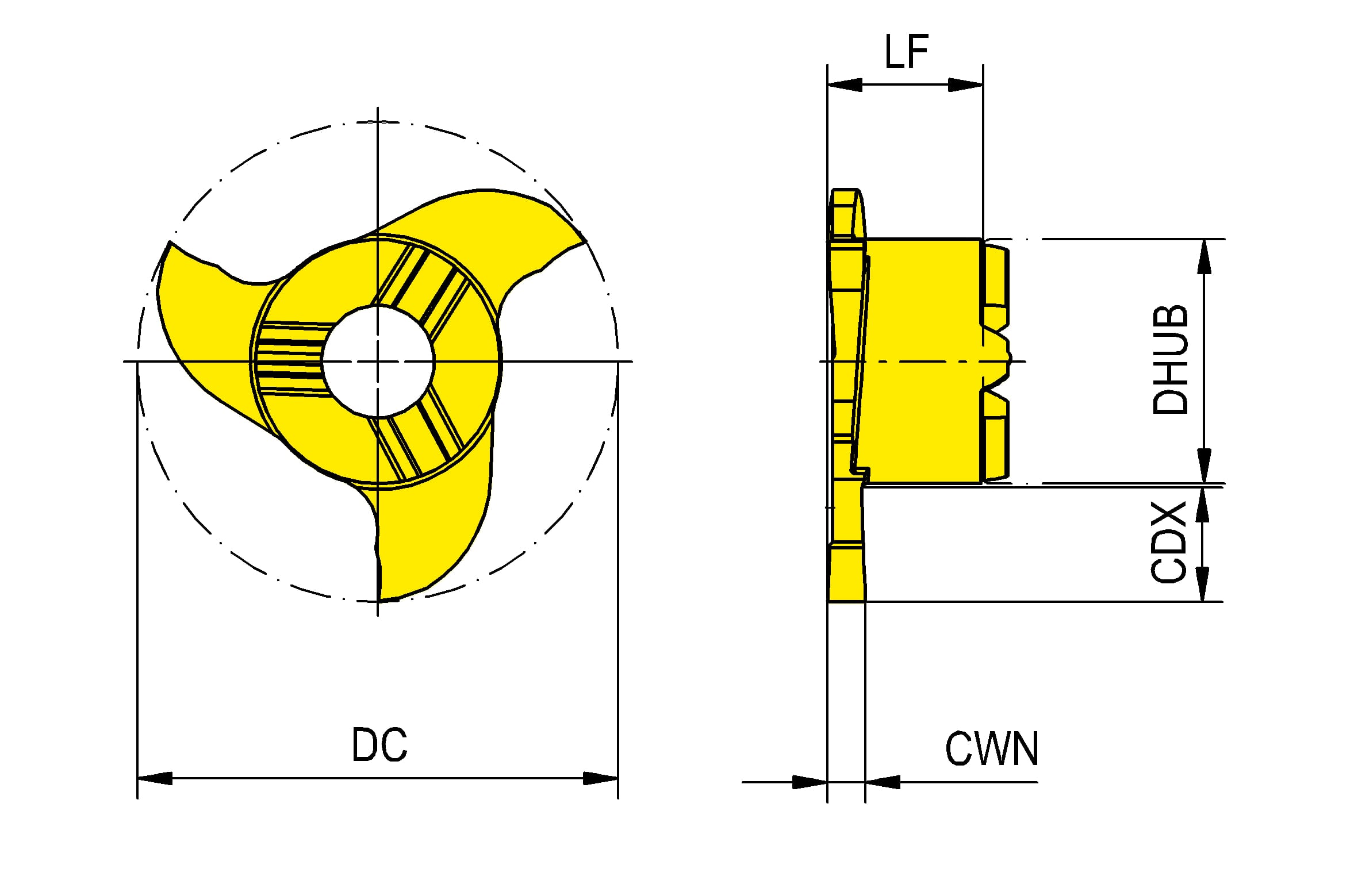

Wide retaining ring (RTRG)
1.1 mm
Cutting width minimum (CWN)
1.2 mm
Functional length (LF)
5.75 mm
hub diameter (DHUB)
9.1 mm
Cutting diameter (DC)
17.7 mm
Cutting depth maximum (CDX)
3.5 mm
| Downloads | |
|---|---|
| 311_0110_00_TN35-ISO.XML | Download |
| 311_0110_00_TN35-DXF.DXF | Download |
| 311_0110_00_TN35-STP.STP | Download |
| 311_0110_00_TN35-DIN.XML | Download |
| Download all files | |
